IXBF12N300
Transistors - IGBTs - Single
- Manufacturer No:
- IXBF12N300
- Manufacture:
- IXYS
- Package:
- i4-Pac™-5 (3 Leads)
- Datasheet:
- IXBF12N300
- Description:
- IGBT 3000V 26A 125W ISOPLUSI4
In Stock
27 pcs On sales
$39.52
Product Parameter
- Gate Charge
- 62nC
- Current - Collector (Ic) (Max)
- 26A
- Part Status
- Active
- Current - Collector Pulsed (Icm)
- 98A
- Power - Max
- 125W
- Voltage - Collector Emitter Breakdown (Max)
- 3000V
- Mounting Type
- Through Hole
- Package / Case
- i4-Pac™-5 (3 Leads)
- Test Condition
- -
- Switching Energy
- -
- Td (on/off) @ 25°C
- -
- Series
- BIMOSFET™
- Operating Temperature
- -55°C ~ 150°C (TJ)
- IGBT Type
- -
- Supplier Device Package
- ISOPLUS i4-PAC™
- Packaging
- Tube
- Vce(on) (Max) @ Vge, Ic
- 3.2V @ 15V, 12A
- Input Type
- Standard
- Reverse Recovery Time (trr)
- 1.4µs
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
IXBF12N300 Relevant information
IXBF10N300C
IGBT 3000V 29A 240W ISOPLUSI4
IXBF12N300
IGBT 3000V 26A 125W ISOPLUSI4
IXBF15N300C
IGBT 3000V 37A 300W ISOPLUSI4

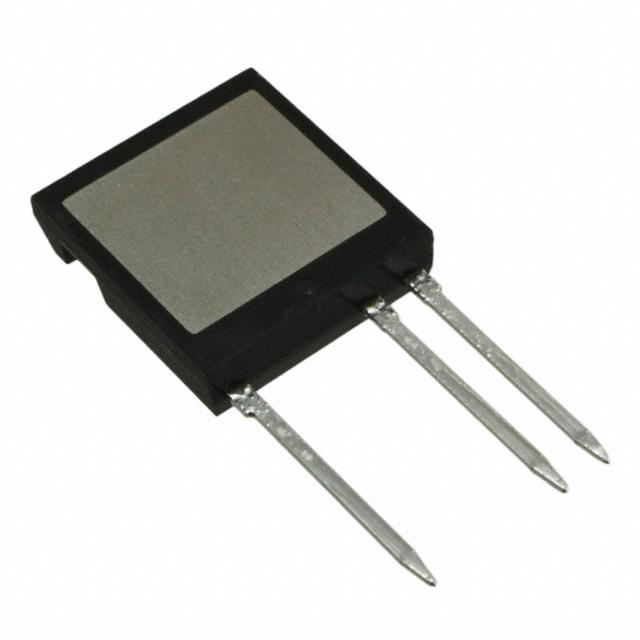

IXBF20N300
IGBT 3000V 34A 150W ISOPLUSI4

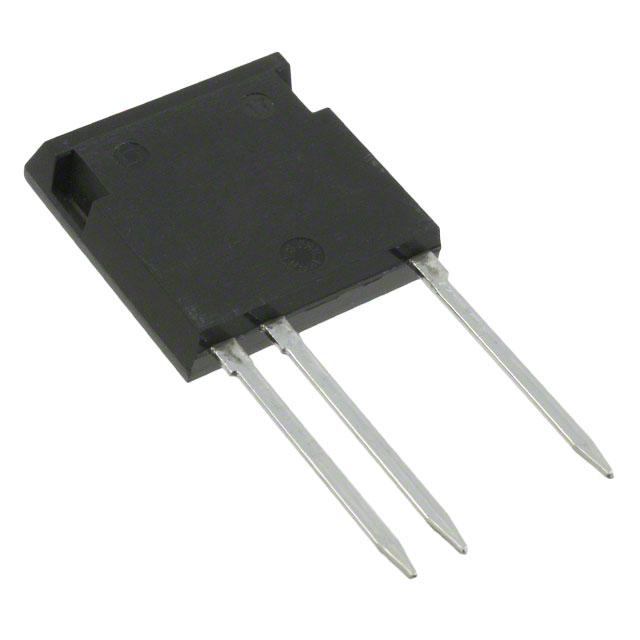

IXBF20N360
