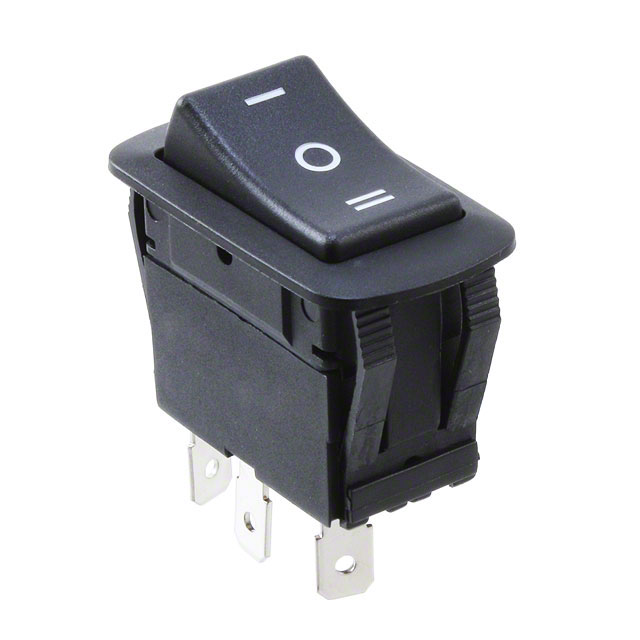

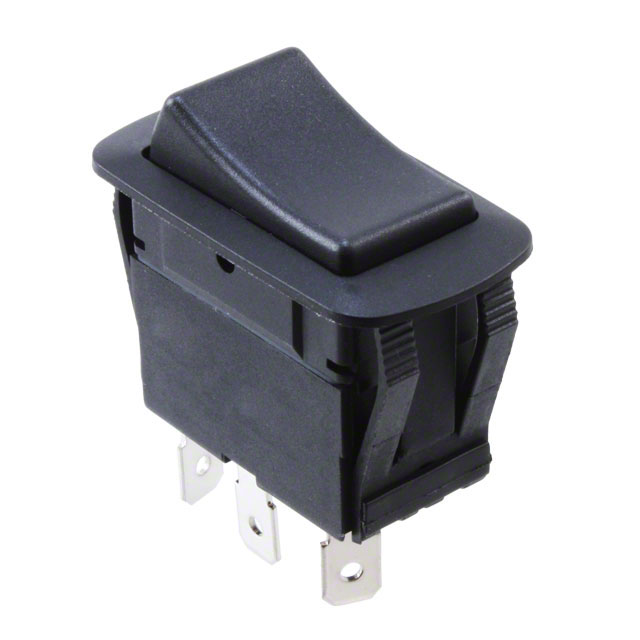

KGC2ANB1BBD
Rocker Switches
- Manufacturer No:
- KGC2ANB1BBD
- Manufacture:
- ZF Electronics
- Datasheet:
- KGC2ANB1BBD
- Description:
- SWITCH ROCKER SPST 20A 125V
In Stock
944 pcs On sales
$5.36
Product Parameter
- Mounting Type
- Panel Mount, Snap-In
- Panel Cutout Dimensions
- Rectangular - 36.60mm x 21.20mm
- Electrical Life
- 6,000 Cycles
- Illumination Type, Color
- -
- Mechanical Life
- 100,000 Cycles
- Illumination Voltage (Nominal)
- -
- Switch Function
- On-Off
- Actuator Marking
- O -
- Termination Style
- Quick Connect - 0.250" (6.3mm)
- Series
- KG
- Ingress Protection
- IP56 - Dust Protected, Water Resistant
- Circuit
- SPST
- Voltage Rating - AC
- 125V
- Features
- -
- Voltage Rating - DC
- 14V
- Packaging
- Bulk
- Color - Actuator/Cap
- Black
- Part Status
- Active
- Current Rating (Amps)
- 20A (AC), 21A (DC)
- Actuator Type
- Concave (Curved)
- Operating Temperature
- -20°C ~ 85°C
