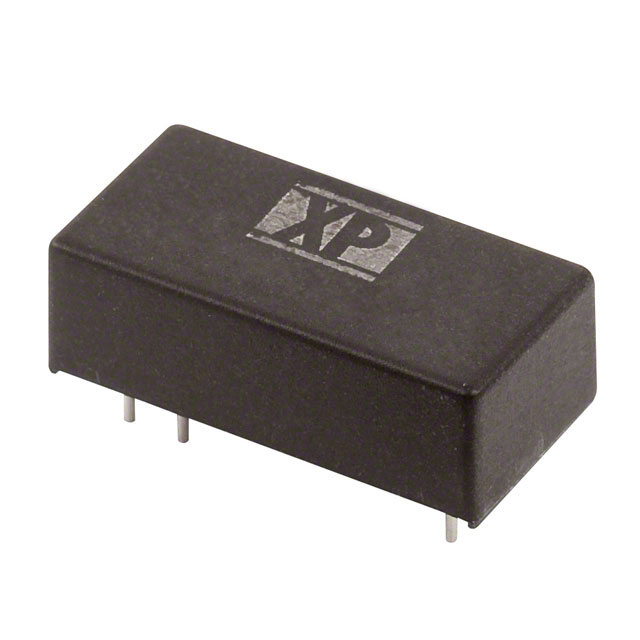

LDU2430S1000
LED Drivers
- Manufacturer No:
- LDU2430S1000
- Manufacture:
- XP Power
- Package:
- 16-DIP Module, 9 Leads
- Datasheet:
- LDU2430S1000
- Description:
- LED SUPPLY CC BUCK 2-28V 1000MA
In Stock
112 pcs On sales
$10
Product Parameter
- Type
- Constant Current
- Package / Case
- 16-DIP Module, 9 Leads
- Series
- LDU24
- Size / Dimension
- 0.92" L x 0.55" W x 0.40" H (23.4mm x 14.0mm x 10.2mm)
- Weight
- 0.014 lb (6.35 g)
- Voltage - Output
- 2 ~ 28V
- Dimming
- Analog, PWM
- Number of Outputs
- 1
- Features
- Remote On/Off, SCP
- Operating Temperature
- -40°C ~ 70°C
- Topology
- Buck
- Voltage - Input (Max)
- 30V
- Approvals
- EN
- Voltage - Input (Min)
- 7V
- Packaging
- Tube
- Current - Output (Max)
- 1A
- Efficiency
- 95%
- Part Status
- Active
- Mounting Type
- Through Hole
- Power (Watts)
- 24W
