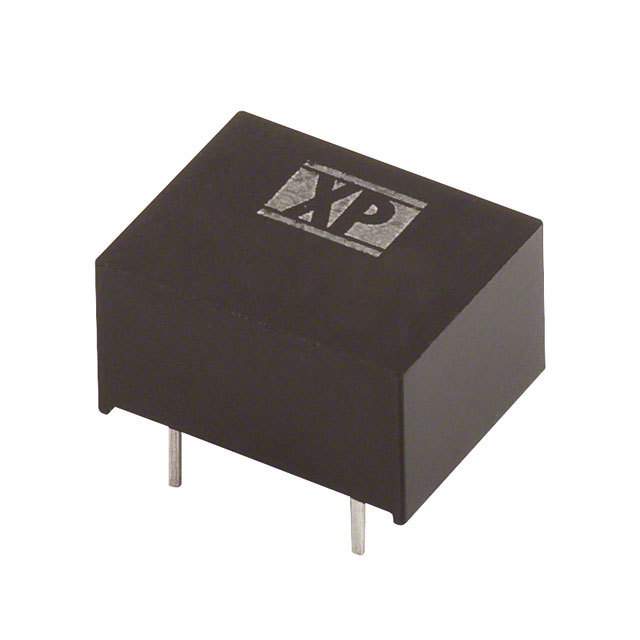

LDU0830S350
LED Drivers
- Manufacturer No:
- LDU0830S350
- Manufacture:
- XP Power
- Package:
- 14-DIP Module, 5 Leads
- Datasheet:
- LDU0830S350
- Description:
- LED SUPPLY CC BUCK 2-28V 350MA
In Stock
65 pcs On sales
$8
Product Parameter
- Features
- Remote On/Off, SCP
- Operating Temperature
- -40°C ~ 85°C
- Topology
- Buck
- Voltage - Input (Max)
- 30V
- Approvals
- EN
- Voltage - Input (Min)
- 7V
- Packaging
- Tube
- Current - Output (Max)
- 350mA
- Efficiency
- 95%
- Part Status
- Active
- Mounting Type
- Through Hole
- Power (Watts)
- 8W
- Type
- Constant Current
- Package / Case
- 14-DIP Module, 5 Leads
- Series
- LDU08
- Size / Dimension
- 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm)
- Weight
- 0.006 lb (2.72 g)
- Voltage - Output
- 2 ~ 28V
- Dimming
- Analog, PWM
- Number of Outputs
- 1
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
LDU0830S350 Relevant information
LDU0516S300
LED SUPPLY CC BUCK 2-14V 300MA
LDU0516S350
LED SUPPLY CC BUCK 2-14V 350MA
LDU0716S500
LED SUPPLY CC BUCK 2-14V 500MA
LDU0830S300
LED SUPPLY CC BUCK 2-28V 300MA
LDU0830S350
LED SUPPLY CC BUCK 2-28V 350MA

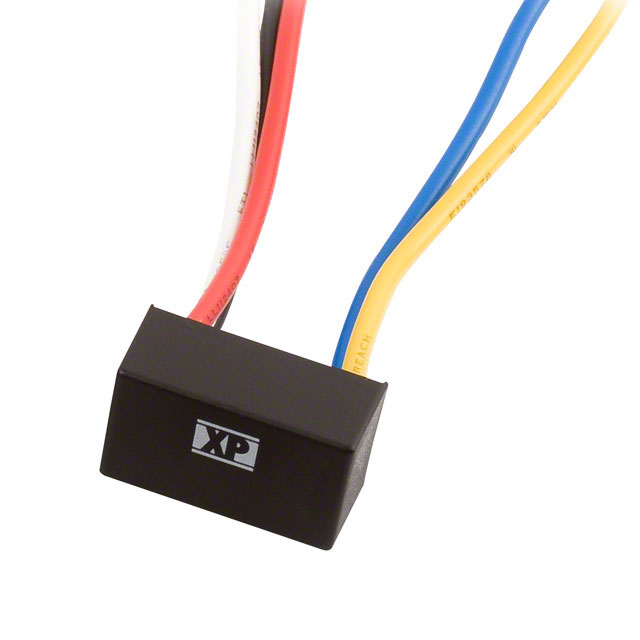

LDU0830S350-WD
