EML30US05-P
AC DC Converters
- Manufacturer No:
- EML30US05-P
- Manufacture:
- XP Power
- Package:
- 4-DIP Module
- Datasheet:
- EML30US05-P
- Description:
- AC/DC CONVERTER 5V 30W
In Stock
8 pcs On sales
$37.08
Product Parameter
- Package / Case
- 4-DIP Module
- Line Regulation
- ±0.5%
- Type

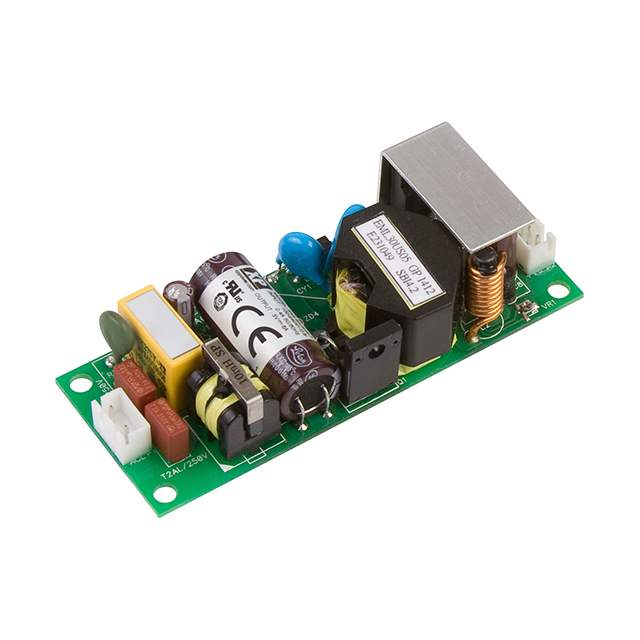

- Open Frame
- Load Regulation
- ±1%
- Series
- EML30 (30W)
- Voltage - Input
- 85 ~ 264 VAC
- Weight
- 0.13 lb (58.97 g)
- Size / Dimension
- 2.96" L x 1.36" W x 1.05" H (75.2mm x 34.6mm x 26.7mm)
- Features
- OCP, OVP, SCP
- Number of Outputs
- 1
- Approvals
- CB, TUV, UL
- Voltage - Output 1
- 5V
- Efficiency
- 75%
- Voltage - Output 2
- -
- Part Status
- Active
- Voltage - Output 3
- -
- Applications
- Medical
- Voltage - Output 4
- -
- Mounting Type
- Through Hole
- Operating Temperature
- -20°C ~ 70°C (With Derating)
- Power (Watts)
- 30W
- Current - Output (Max)
- 6A
