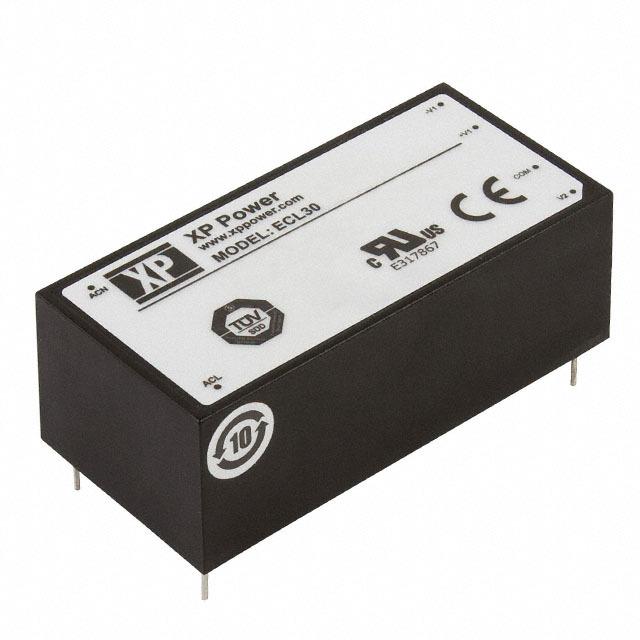

ECL30UD01-P
AC DC Converters
- Manufacturer No:
- ECL30UD01-P
- Manufacture:
- XP Power
- Package:
- 5-DIP Module
- Datasheet:
- ECL30UD01-P
- Description:
- AC/DC CONVERTER +/-12V 30W
In Stock
0 pcs On sales
$50.95
Product Parameter
- Type
- Open Frame
- Load Regulation
- ±1%
- Series
- ECL (30W)
- Voltage - Input
- 85 ~ 264 VAC
- Weight
- 0.132 lb (59.87 g)
- Size / Dimension
- 2.96" L x 1.36" W x 1.05" H (75.2mm x 34.6mm x 26.7mm)
- Features
- OVP, SCP
- Number of Outputs
- 2
- Approvals
- CSA, cUL, EN, IEC, UL
- Voltage - Output 1
- 12V
- Efficiency
- 84%
- Voltage - Output 2
- -12V
- Part Status
- Active
- Voltage - Output 3
- -
- Applications
- ITE (Commercial)
- Voltage - Output 4
- -
- Mounting Type
- Through Hole
- Operating Temperature
- -20°C ~ 70°C (With Derating)
- Power (Watts)
- 30W
- Current - Output (Max)
- 1.3A, 1.3A
- Package / Case
- 5-DIP Module
- Line Regulation
- ±0.5%
