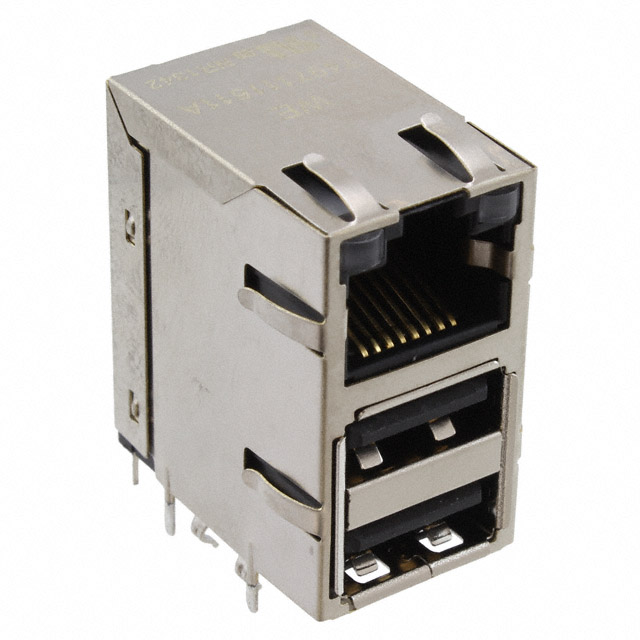

7497110616
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- 7497110616
- Manufacture:
- Wurth Electronics Inc.
- Datasheet:
- 7497110616
- Description:
- CONN MAGJACK 1PORT 1000 BASE-T
In Stock
340 pcs On sales
$19.36
Product Parameter
- Series
- WE-RJ45 LAN
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Green, Orange - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Copper Alloy
- Shielding
- Shielded
- Contact Material
- Tin
- Orientation
- 90° Angle (Right)
- Height Above Board
- 1.260" (32.00mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Up
- Connector Type
- RJ45 with USB A, Dual
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
7497110616 Relevant information

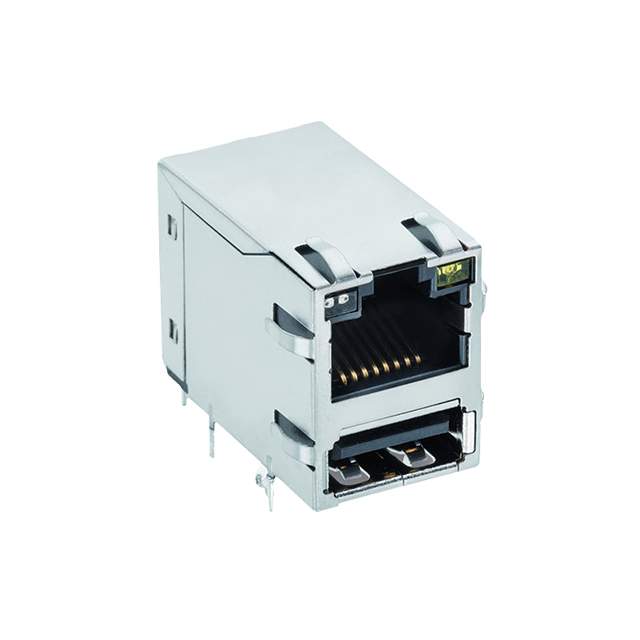

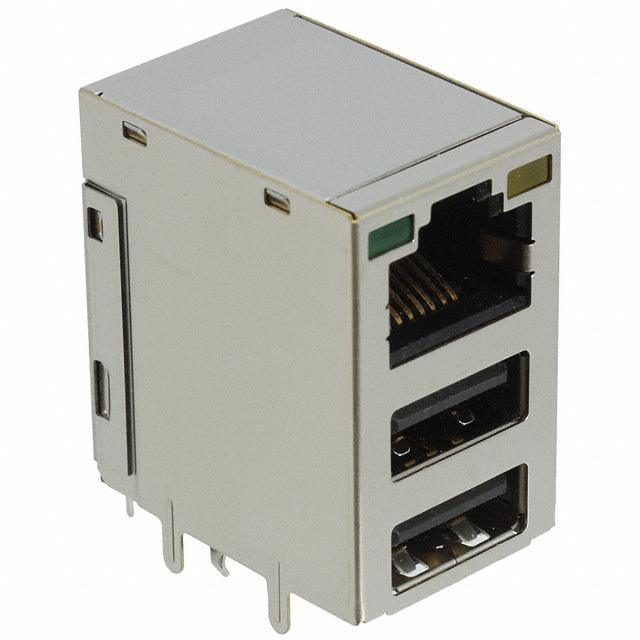

7497010211A
CONN MAGJACK 1PORT 100 BASE-T
7497011611A
CONN MAGJACK 1PORT 100BASE-T PCB
7497110616
CONN MAGJACK 1PORT 1000 BASE-T
7497111611A
CONN MAGJACK 1PORT 100 BASE-T

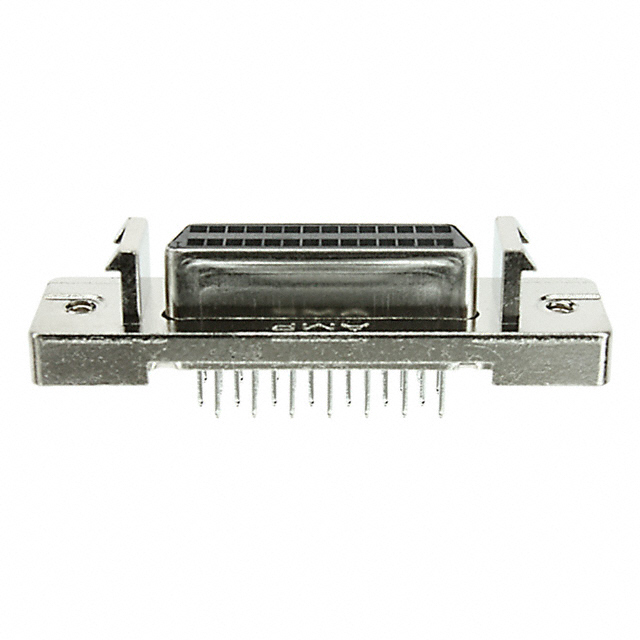

749721-1
