691805010302
Terminal Blocks - Wire to Board
- Manufacturer No:
- 691805010302
- Manufacture:
- Wurth Electronics Inc.
- Datasheet:
- 691805010302
- Description:
- TERM BLK 2POS SIDE ENT 2.5MM SMD
In Stock
552 pcs On sales
$0
Product Parameter
- Pitch
- 0.098" (2.50mm)
- Mating Orientation
- Horizontal with Board
- Series
- WR-TBL Series 8050
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Current
- 6A
- Positions Per Level
- 2
- Features
- Solder Retention
- Operating Temperature
- -45°C ~ 130°C
- Packaging
- Digi-Reel®
- Clamp Material - Plating
- Copper Alloy
- Wire Gauge
- 20-26 AWG
- Screw Material - Plating
- -
- Part Status
- Active
- Contact Material - Plating
- Brass - Tin Plated
- Screw Thread
- -
- Mounting Type
- Surface Mount
- Torque - Screw
- -
- Number of Levels
- 1
- Color
- Black
- Wire Termination
- Screwless
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
691805010302 Relevant information
691805010302
TERM BLK 2POS SIDE ENT 2.5MM SMD

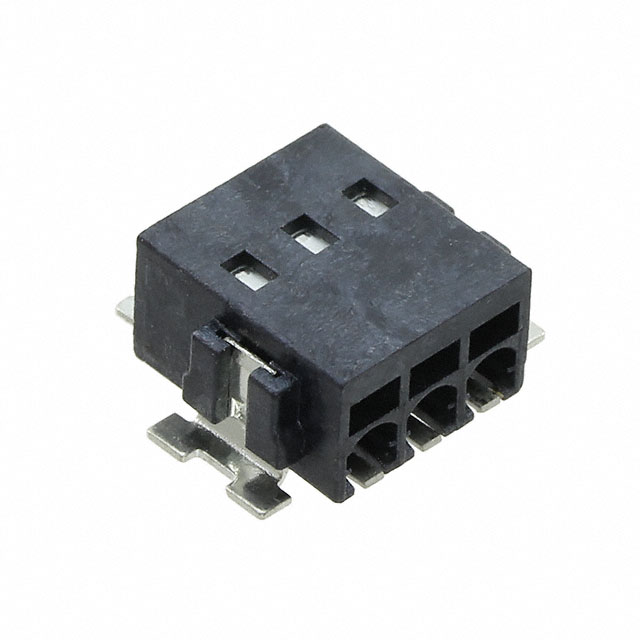

691805010303
