287-1ABHE
Thermal - Heat Sinks
- Manufacturer No:
- 287-1ABHE
- Manufacture:
- Wakefield-Vette
- Datasheet:
- 287-1ABHE
- Description:

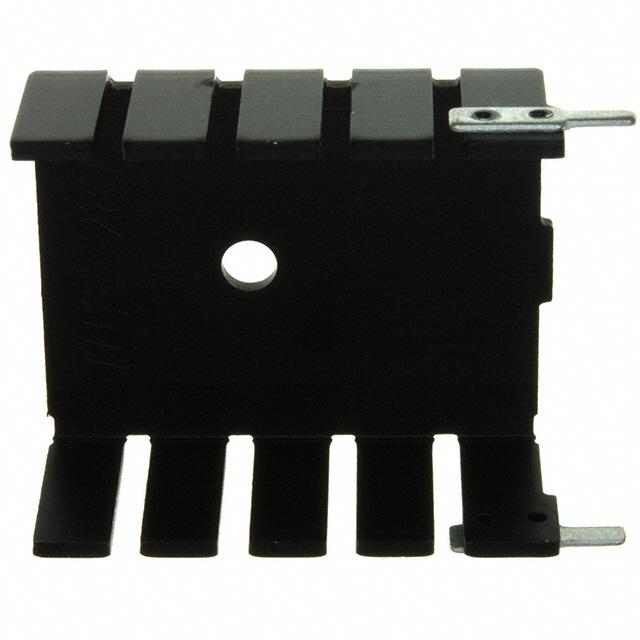

- HEATSINK FOR TO220
In Stock
0 pcs On sales
$0.42
Product Parameter
- Type
- Board Level, Vertical
- Height Off Base (Height of Fin)
- 0.500" (12.70mm)
- Shape
- Rectangular, Fins
- Power Dissipation @ Temperature Rise
- 4.0W @ 65°C
- Width
- 1.000" (25.40mm)
- Thermal Resistance @ Forced Air Flow
- 7.80°C/W @ 200 LFM
- Length
- 1.180" (29.97mm)
- Series
- 287
- Diameter
- -
- Material
- Aluminum
- Part Status
- Active
- Package Cooled
- TO-220
- Material Finish
- Black Anodized
- Attachment Method
- Bolt On and PC Pin
- Thermal Resistance @ Natural
- 16.20°C/W
