SIZ720DT-T1-GE3
Transistors - FETs, MOSFETs - Arrays
- Manufacturer No:
- SIZ720DT-T1-GE3
- Manufacture:
- Vishay / Siliconix
- Package:
- 6-PowerPair™
- Datasheet:
- SIZ720DT-T1-GE3
- Description:
- MOSFET 2N-CH 20V 16A POWERPAIR
In Stock
0 pcs On sales
$0.61
Product Parameter
- Supplier Device Package
- 6-PowerPair™
- Series
- TrenchFET®
- Gate Charge (Qg) (Max) @ Vgs
- 23nC @ 10V
- FET Type
- 2 N-Channel (Half Bridge)
- Drain to Source Voltage (Vdss)
- 20V
- Packaging
- Tape & Reel (TR)
- Input Capacitance (Ciss) (Max) @ Vds
- 825pF @ 10V
- FET Feature
- Logic Level Gate
- Current - Continuous Drain (Id) @ 25°C
- 16A
- Part Status
- Active
- Power - Max
- 27W, 48W
- Mounting Type
- Surface Mount
- Package / Case
- 6-PowerPair™
- Vgs(th) (Max) @ Id
- 2V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 8.7mOhm @ 16.8A, 10V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SIZ720DT-T1-GE3 Relevant information
SIZ700DT-T1-GE3
MOSFET 2N-CH 20V 16A PPAK 1212-8

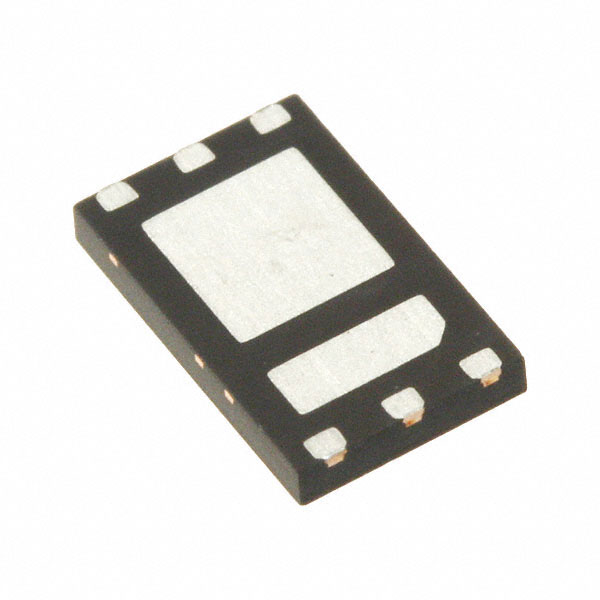

SIZ702DT-T1-GE3
MOSFET 2N-CH 30V 16A POWERPAIR
SIZ704DT-T1-GE3
MOSFET 2N-CH 30V 12A PPAK 1212-8

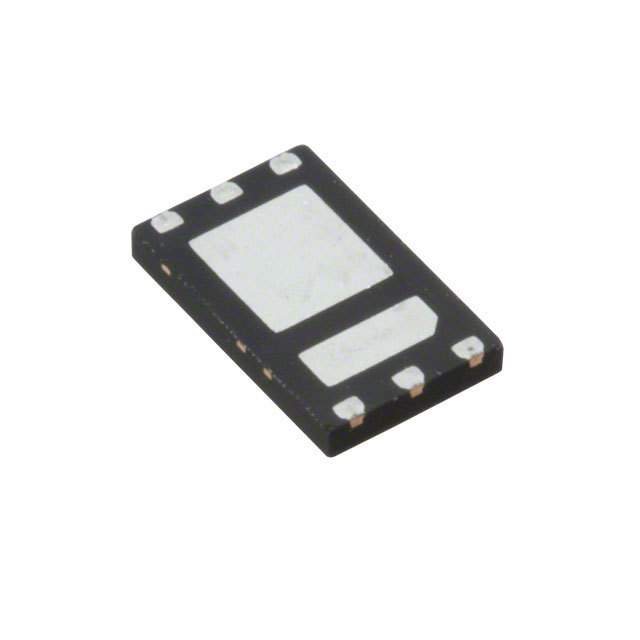

SIZ710DT-T1-GE3
MOSFET 2N-CH 20V 16A POWERPAIR
SIZ720DT-T1-GE3
MOSFET 2N-CH 20V 16A POWERPAIR

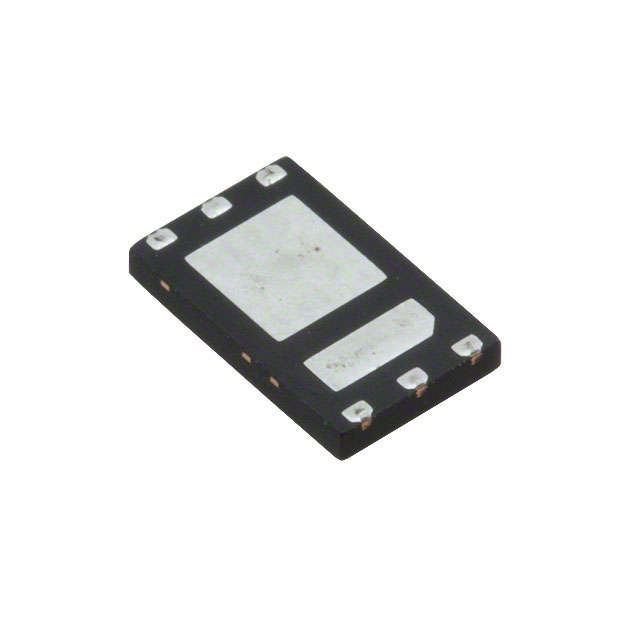

SIZ728DT-T1-GE3
