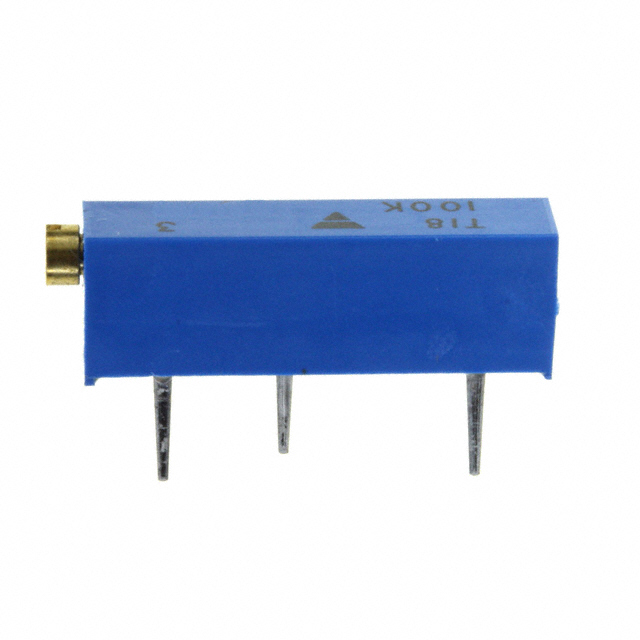

T18101KT10
Trimmer Potentiometers
- Manufacturer No:
- T18101KT10
- Manufacture:
- Vishay / Sfernice
- Datasheet:
- T18101KT10
- Description:
- TRIMMER 100OHM 0.75W PC PIN SIDE
In Stock
0 pcs On sales
$1.14
Product Parameter
- Number of Turns
- 15
- Size / Dimension
- Rectangular - 0.252" x 0.189" Face x 0.748" L (6.40mm x 4.80mm x 19.00mm)
- Termination Style
- PC Pins
- Resistive Material
- Cermet
- Series
- T18
- Temperature Coefficient
- ±100ppm/°C
- Packaging
- Tube
- Tolerance
- ±10%
- Resistance
- 100 Ohms
- Part Status
- Active
- Mounting Type
- Through Hole
- Power (Watts)
- 0.75W, 3/4W
- Adjustment Type
- Side Adjustment
