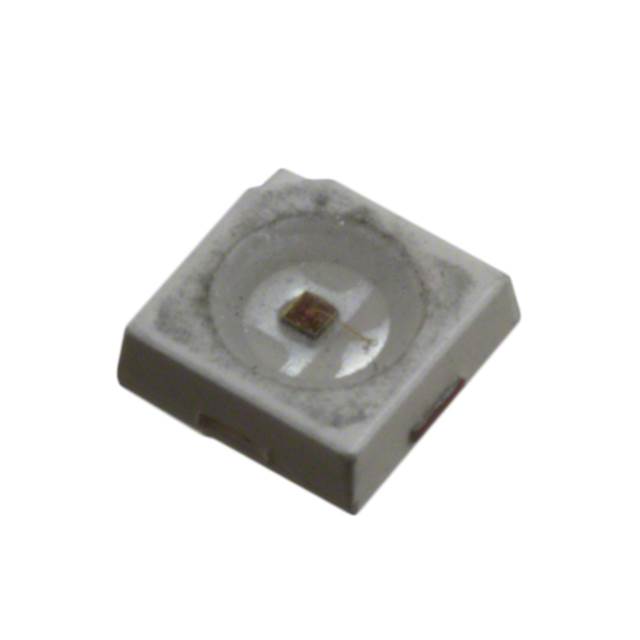

OVS5MBBCR4
LED Lighting - Color
- Manufacturer No:
- OVS5MBBCR4
- Manufacture:
- TT Electronics / Optek Technology
- Package:
- 1414 (3535 Metric)
- Datasheet:
- OVS5MBBCR4
- Description:
- LED 0.48W BLUE WTR CLR 3.5MM
In Stock
28089 pcs On sales
$0
Product Parameter
- Wavelength
- 465nm (460nm ~ 470nm)
- Voltage - Forward (Vf) (Typ)
- 3.4V
- Part Status
- Active
- Thermal Resistance of Package
- 5°C/W
- Current - Max
- 180mA
- Flux @ Current/Temperature - Test
- 7lm (5lm ~ 8lm)
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
- Current - Test
- 150mA
- Package / Case
- 1414 (3535 Metric)
- Size / Dimension
- 0.138" L x 0.138" W (3.50mm x 3.50mm)
- Temperature - Test
- 25°C
- Color
- Blue
- Height - Seated (Max)
- 0.055" (1.40mm)
- Series
- -
- Supplier Device Package
- SMD
- Packaging
- Digi-Reel®
- Lumens/Watt @ Current - Test
- 14 lm/W
