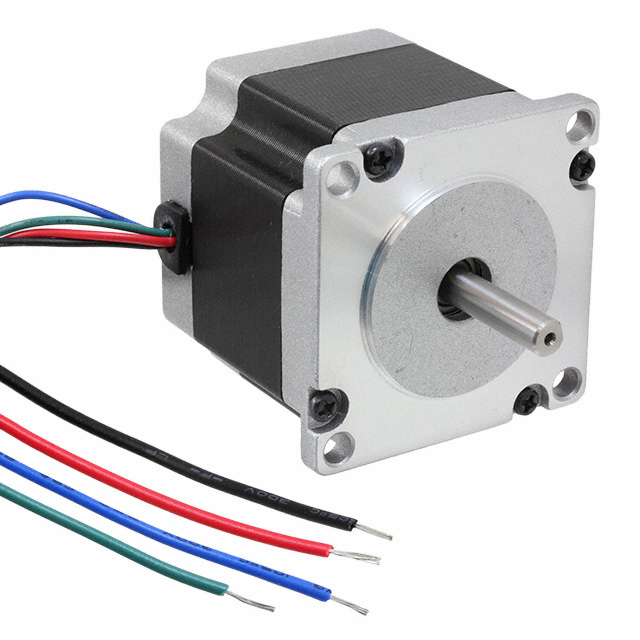

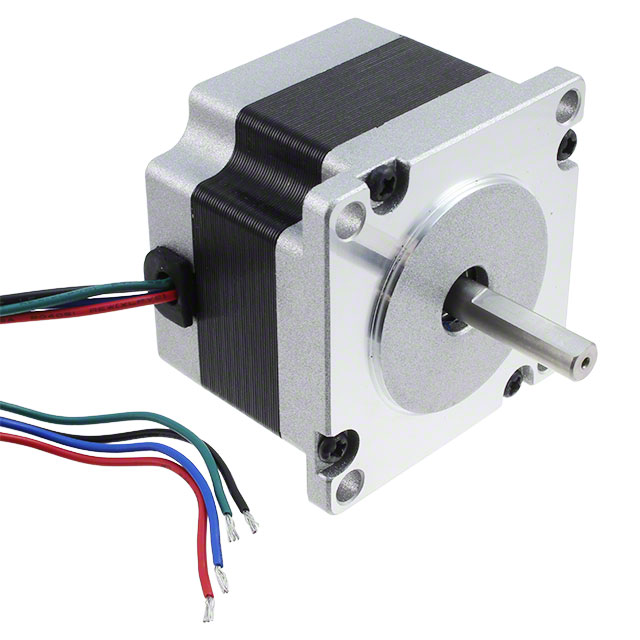

QSH5718-76-28-189
Stepper Motors
- Manufacturer No:
- QSH5718-76-28-189
- Manufacture:
- TRINAMIC Motion Control GmbH
- Datasheet:
- QSH5718-76-28-189
- Description:
- STEP MOTOR HYBRID BIPOLAR 3.2V
In Stock
36 pcs On sales
$86.06
Product Parameter
- Coil Resistance
- 1.13 Ohms
- NEMA Frame Size
- 23
- Type
- Hybrid
- Voltage - Rated
- 3.2VDC
- Series
- QMot QSH5718
- Diameter - Shaft
- 0.250" (6.35mm)
- Weight
- 2.3 lbs (1 kg)
- Size / Dimension
- Square - 2.220" x 2.220" (56.40mm x 56.40mm)
- Accuracy
- ±5%
- Termination Style
- Wire Leads
- Features
- Flatted Shaft
- Steps per Revolution
- 200
- Approvals
- CE
- Current Rating (Amps)
- 2.8A
- Coil Type
- Bipolar
- Mounting Hole Spacing
- 1.856" (47.14mm)
- Step Angle
- 1.8°
- Operating Temperature
- -20°C ~ 50°C
- Part Status
- Active
- Length - Shaft and Bearing
- 0.945" (24.00mm)
- Rotor Inertia
- 480gcm²
- Torque - Holding (oz-in / mNm)
- 267.64 / 1890
