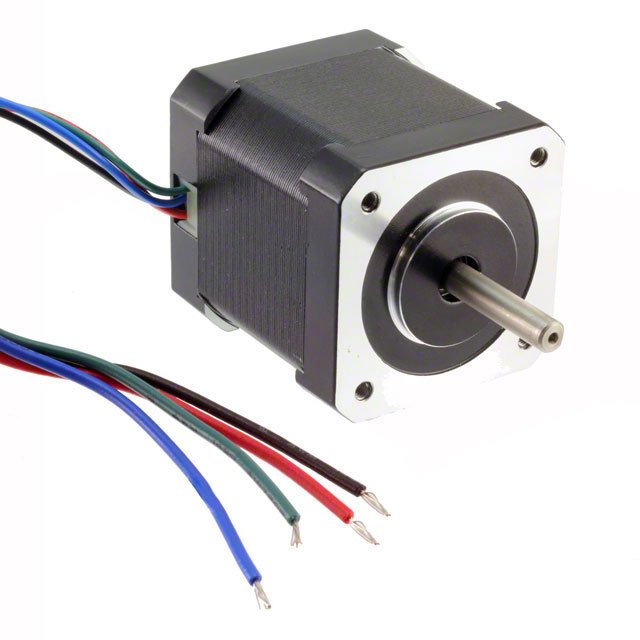

QSH4218-51-10-049
Stepper Motors
- Manufacturer No:
- QSH4218-51-10-049
- Manufacture:
- TRINAMIC Motion Control GmbH
- Datasheet:
- QSH4218-51-10-049
- Description:
- STEPPER MOTOR HYBRID BIPOLAR 5V
In Stock
162 pcs On sales
$46.28
Product Parameter
- Approvals
- CE
- Current Rating (Amps)
- 1A
- Coil Type
- Bipolar
- Mounting Hole Spacing
- 1.220" (30.99mm)
- Step Angle
- 1.8°
- Operating Temperature
- -20°C ~ 50°C
- Part Status
- Active
- Length - Shaft and Bearing
- 0.945" (24.00mm)
- Rotor Inertia
- 68gcm²
- Torque - Holding (oz-in / mNm)
- 69.39 / 490
- Coil Resistance
- 5 Ohms
- NEMA Frame Size
- 17
- Type
- Hybrid
- Voltage - Rated
- 5VDC
- Series
- QMot QSH4218
- Diameter - Shaft
- 0.197" (5.00mm)
- Weight
- 0.772 lb (350.17 g)
- Size / Dimension
- Square - 1.665" x 1.665" (42.30mm x 42.30mm)
- Accuracy
- ±5%
- Termination Style
- Wire Leads
- Features
- Flatted Shaft
- Steps per Revolution
- 200
