QSH2818-32-07-006
Stepper Motors
- Manufacturer No:
- QSH2818-32-07-006
- Manufacture:
- TRINAMIC Motion Control GmbH
- Datasheet:
- QSH2818-32-07-006
- Description:
- STEP MOTOR HYBRID BIPOLAR 3.8V
In Stock
143 pcs On sales
$37.53
Product Parameter
- Rotor Inertia
- 9gcm²
- Torque - Holding (oz-in / mNm)
- 8.49 / 60
- Coil Resistance
- 5.6 Ohms
- NEMA Frame Size
- 11
- Type
- Hybrid
- Voltage - Rated
- 3.8VDC
- Series
- QMot QSH2818
- Diameter - Shaft
- 0.197" (5.00mm)
- Weight
- 0.242 lb (109.77 g)
- Size / Dimension
- Square - 1.100" x 1.100" (28.00mm x 28.00mm)
- Accuracy
- ±5%
- Termination Style
- Wire Leads
- Features
- Flatted Shaft
- Steps per Revolution
- 200
- Approvals
- CE
- Current Rating (Amps)
- 670mA
- Coil Type
- Bipolar
- Mounting Hole Spacing
- 0.905" (22.98mm)
- Step Angle
- 1.8°
- Operating Temperature
- -20°C ~ 50°C
- Part Status
- Active
- Length - Shaft and Bearing
- 0.787" (20.00mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
QSH2818-32-07-006 Relevant information
QSH2818-32-07-006
STEP MOTOR HYBRID BIPOLAR 3.8V

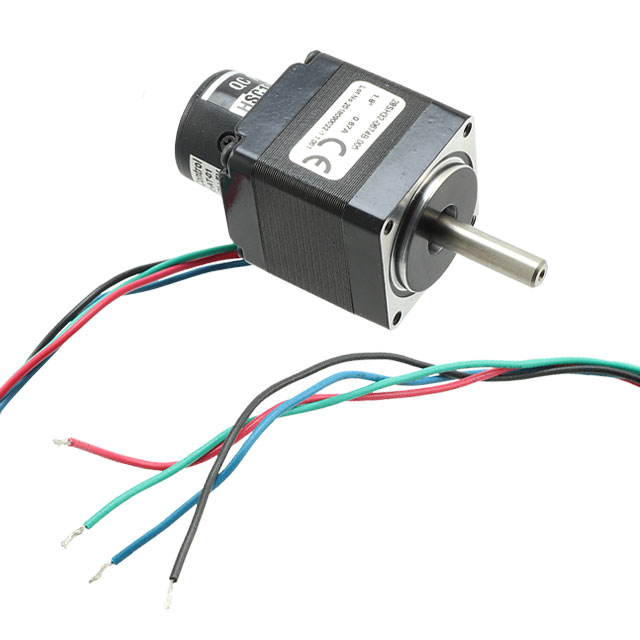

QSH2818-32-07-006-8192-AT
STEP MOTOR HYBRID NEMA11 ENC 819

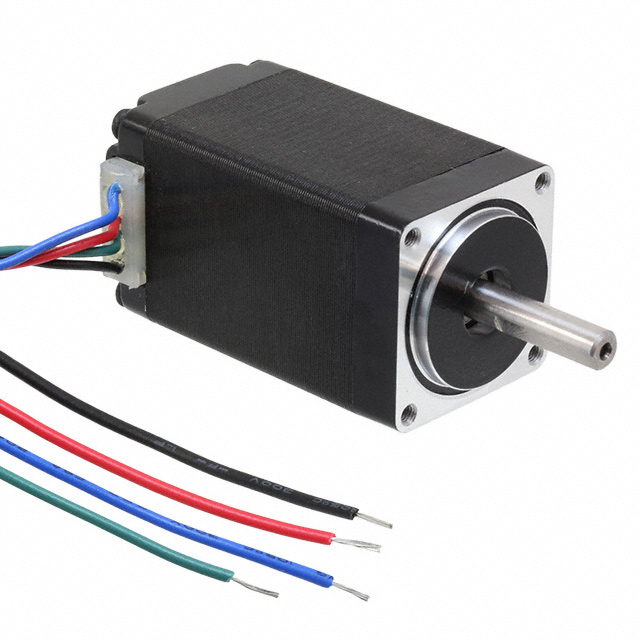

QSH2818-51-07-012
STEP MOTOR HYBRID BIPOLAR 6.2V
QSH2818-51-07-012-8192-AT
STEP MOTOR HYBRID NEMA11 ENC 819

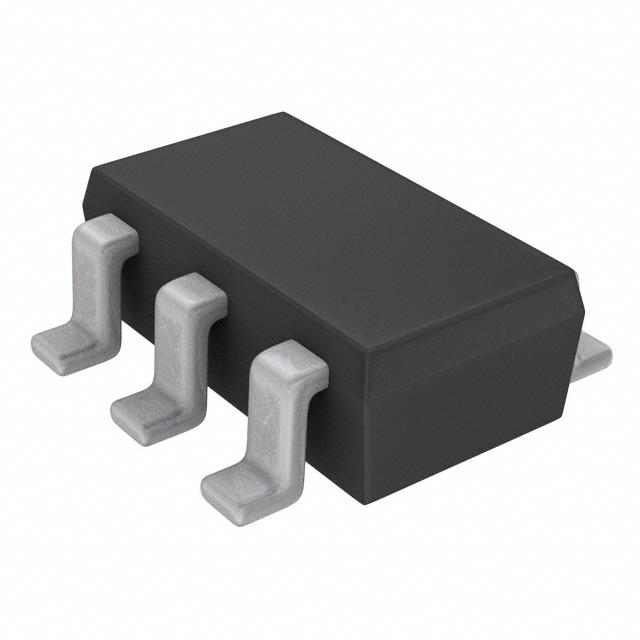

QSH29TR
