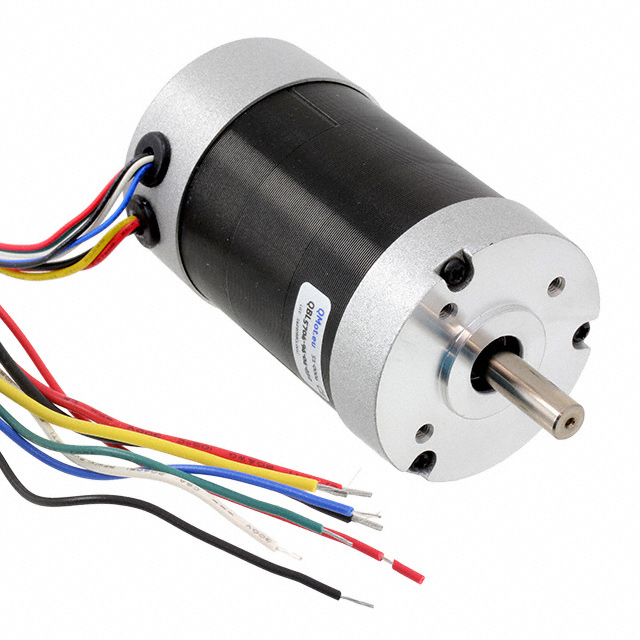

QBL5704-116-04-042
Motors - AC, DC
- Manufacturer No:
- QBL5704-116-04-042
- Manufacture:
- TRINAMIC Motion Control GmbH
- Datasheet:
- QBL5704-116-04-042
- Description:
- STANDARD MOTOR 4000 RPM 36VDC
In Stock
69 pcs On sales
$169.11
Product Parameter
- Type
- DC Motor
- Size / Dimension
- Round - 2.244" Dia (57.00mm)
- Series
- QMot QBL5704
- Termination Style
- Wire Leads
- Weight
- 2.8 lbs (1.3 kg)
- Gear Reduction Ratio
- -
- Features
- -
- Mounting Hole Spacing
- 1.811" (46.00mm)
- Function
- Standard
- Operating Temperature
- -20°C ~ 40°C
- Approvals
- -
- Length - Shaft and Bearing
- 0.984" (25.00mm)
- Motor Type
- Brushless (BLDC)
- Torque - Rated (oz-in / mNm)
- 59.48 / 420
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 184.1 / 1300
- Encoder Type
- -
- Power - Rated
- 175.9W
- Voltage - Rated
- 36VDC
- RPM
- 4000 RPM
- Diameter - Shaft
- 0.315" (8.00mm)
