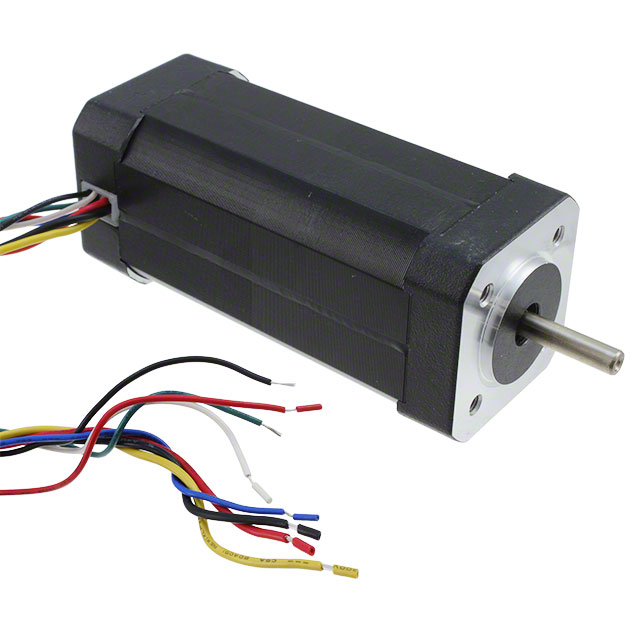

QBL4208-61-04-013
Motors - AC, DC
- Manufacturer No:
- QBL4208-61-04-013
- Manufacture:
- TRINAMIC Motion Control GmbH
- Datasheet:
- QBL4208-61-04-013
- Description:
- STANDARD MOTOR 4000 RPM 24VDC
In Stock
46 pcs On sales
$108.71
Product Parameter
- Type
- DC Motor
- Size / Dimension
- Square - 1.654" x 1.654" (42.00mm x 42.00mm)
- Series
- QMot QBL4208
- Termination Style
- Wire Leads
- Weight
- 0.984 lb (450 g)
- Gear Reduction Ratio
- -
- Features
- -
- Mounting Hole Spacing
- 1.417" (36.00mm)
- Function
- Standard
- Operating Temperature
- -20°C ~ 40°C
- Approvals
- -
- Length - Shaft and Bearing
- 0.866" (22.00mm)
- Motor Type
- Brushless (BLDC)
- Torque - Rated (oz-in / mNm)
- 17.7 / 125
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 53.82 / 380
- Encoder Type
- -
- Power - Rated
- 52.4W
- Voltage - Rated
- 24VDC
- RPM
- 4000 RPM
- Diameter - Shaft
- 0.197" (5.00mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
QBL4208-61-04-013 Relevant information
QBL4208-100-04-025
STANDARD MOTOR 4000 RPM 24VDC
QBL4208-100-04-025-1024-AT
BLDC MOTOR 4000 RPM 24VDC ENC 10
QBL4208-41-04-006
STANDARD MOTOR 4000 RPM 24VDC
QBL4208-61-04-013
STANDARD MOTOR 4000 RPM 24VDC

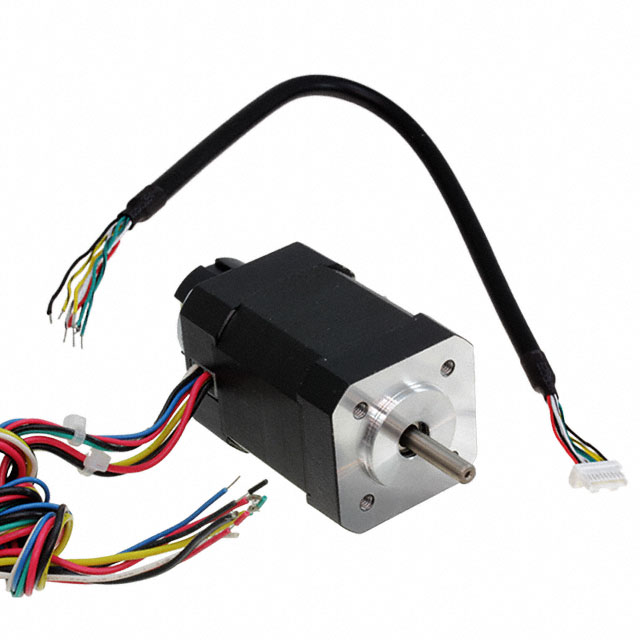

QBL4208-61-04-013-1024-AT
BLDC MOTOR 4000 RPM 24VDC ENC 10

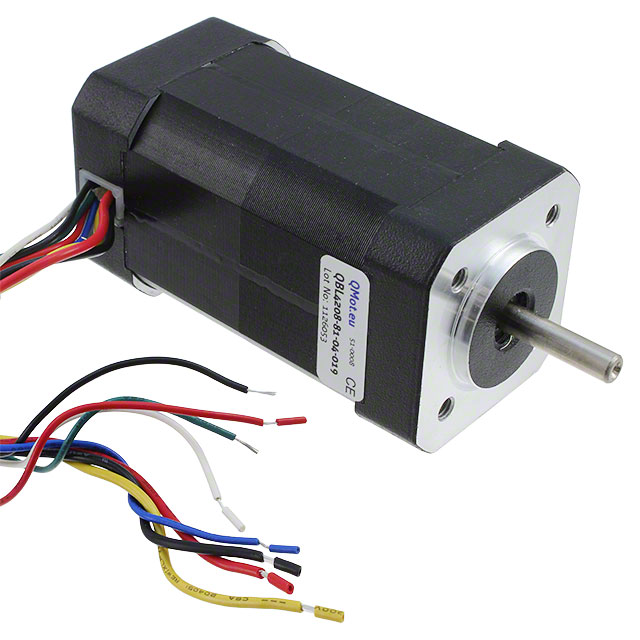

QBL4208-81-04-019
