TPWR8503NL,L1Q
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- TPWR8503NL,L1Q
- Manufacture:
- Toshiba Semiconductor and Storage
- Package:
- 8-PowerVDFN
- Datasheet:
- TPWR8503NL,L1Q
- Description:
- MOSFET N-CH 30V 150A 8DSOP
In Stock
1676 pcs On sales
$0
Product Parameter
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 150A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 2.3V @ 1mA
- Operating Temperature
- 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 0.85mOhm @ 50A, 10V
- Series
- U-MOSVIII-H
- Power Dissipation (Max)
- 800mW (Ta), 142W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- 8-DSOP Advance
- Packaging
- Digi-Reel®
- Gate Charge (Qg) (Max) @ Vgs
- 74nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 30V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 6900pF @ 15V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
TPWR8503NL,L1Q Relevant information

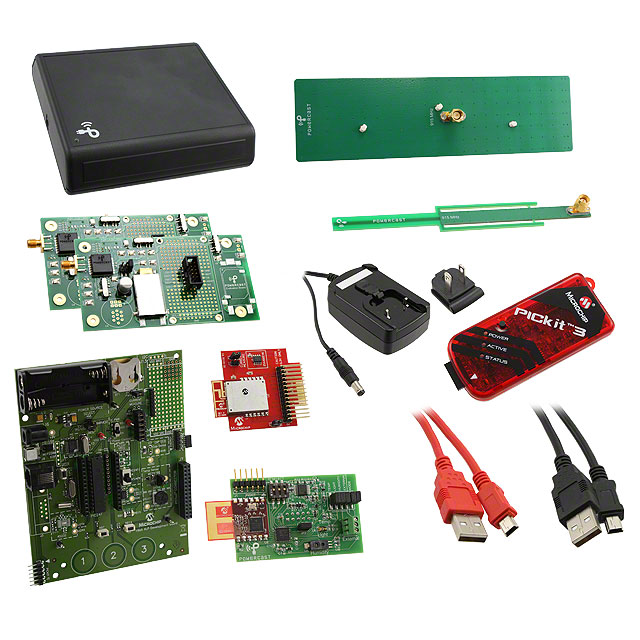

TPWR001
