TPN1600ANH,L1Q

Transistors - FETs, MOSFETs - Single

Manufacturer No:
TPN1600ANH,L1Q
Manufacture:
Toshiba Semiconductor and Storage
Package:
8-PowerVDFN
Datasheet:
TPN1600ANH,L1Q
Description:
MOSFET N CH 100V 17A 8TSON-ADV

In Stock

5220 pcs On sales

$0

Product Parameter

Part Status
Active
Drive Voltage (Max Rds On, Min Rds On)
10V
Mounting Type
Surface Mount
Package / Case
8-PowerVDFN
Vgs(th) (Max) @ Id
4V @ 200µA
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
16mOhm @ 8.5A, 10V
Series
U-MOSVIII-H
Power Dissipation (Max)
700mW (Ta), 42W (Tc)
FET Type
N-Channel
Supplier Device Package
8-TSON Advance (3.3x3.3)
Packaging
Digi-Reel®
Gate Charge (Qg) (Max) @ Vgs
19nC @ 10V
Vgs (Max)
±20V
Drain to Source Voltage (Vdss)
100V
Technology
MOSFET (Metal Oxide)
Input Capacitance (Ciss) (Max) @ Vds
1600pF @ 50V
FET Feature
-
Current - Continuous Drain (Id) @ 25°C
17A (Tc)

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

TPN1600ANH,L1Q Relevant information

TPN11003NL,LQ
TPN11003NL,LQ

MOSFET N CH 30V 11A 8TSON-ADV

TPN11006NL,LQ
TPN11006NL,LQ

MOSFET N-CH 60V 17A 8TSON

TPN1110ENH,L1Q
TPN1110ENH,L1Q

MOSFET N-CH 200V 7.2A 8TSON

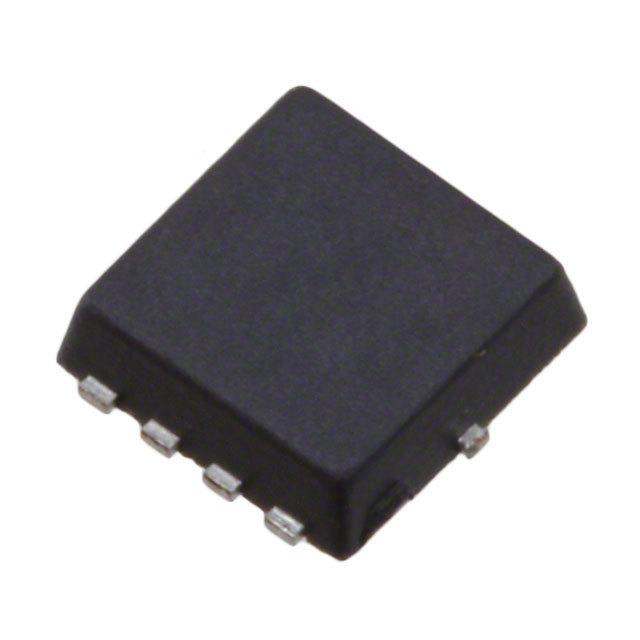

TPN13008NH,L1Q
