TCK104G,LF
PMIC - Power Distribution Switches, Load Drivers
- Manufacturer No:
- TCK104G,LF
- Manufacture:
- Toshiba Semiconductor and Storage
- Package:

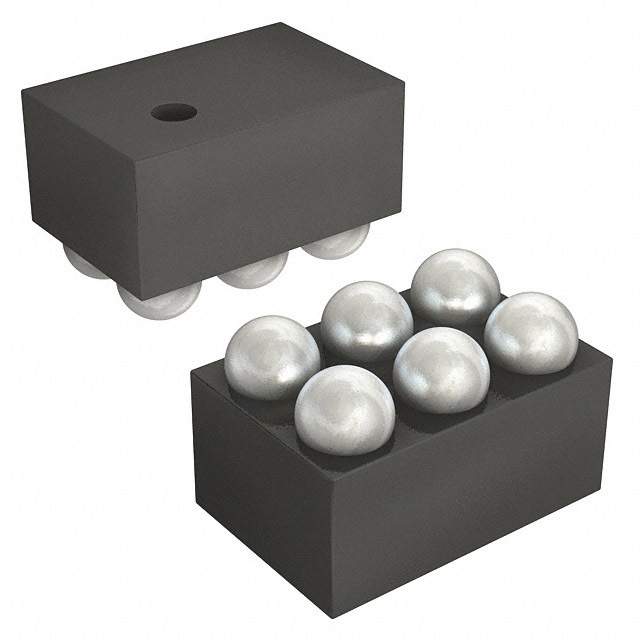

- 6-UFBGA, WLCSP
- Datasheet:
- TCK104G,LF
- Description:
- IC POWER DIST LOAD SWITCH 6WCSP
In Stock
2739 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Operating Temperature
- -40°C ~ 85°C (TA)
- Input Type
- Non-Inverting
- Current - Output (Max)
- 800mA
- Output Type
- P-Channel
- Supplier Device Package
- 6-WCSPB (0.80x1.2)
- Part Status
- Active
- Voltage - Supply (Vcc/Vdd)
- Not Required
- Switch Type
- General Purpose
- Rds On (Typ)
- 50mOhm
- Package / Case
- 6-UFBGA, WLCSP
- Voltage - Load
- 1.1V ~ 5.5V
- Fault Protection
- Current Limiting (Fixed), Over Temperature
- Series
- -
- Number of Outputs
- 1
- Features
- Load Discharge, Slew Rate Controlled
- Output Configuration
- High Side
- Interface
- On/Off
- Ratio - Input:Output
- 1:1
