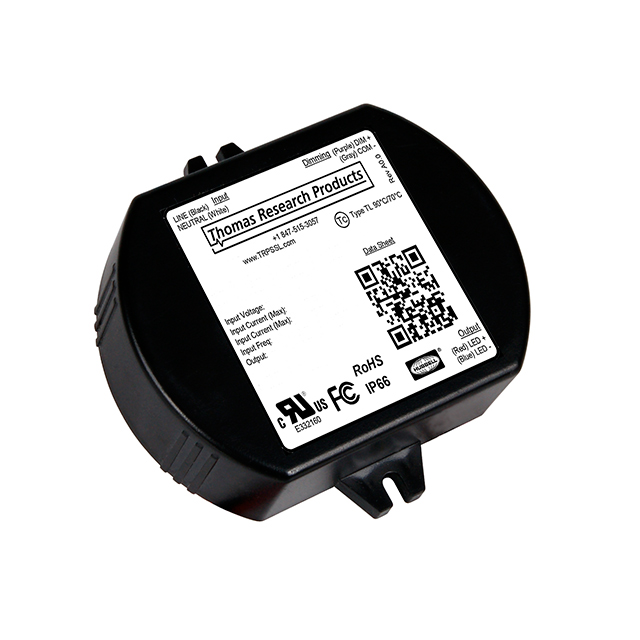

TLED40W-054-C0700-D
LED Drivers
- Manufacturer No:
- TLED40W-054-C0700-D
- Manufacture:
- Thomas Research Products
- Datasheet:
- TLED40W-054-C0700-D
- Description:
- LED DRIVER CC AC/DC 30-54V 700MA
In Stock
0 pcs On sales
$0
Product Parameter
- Approvals
- cURus
- Current - Output (Max)
- 700mA
- Efficiency
- 86%
- Part Status
- Obsolete
- Mounting Type
- Chassis Mount
- Power (Watts)
- 40W
- Type
- Constant Current
- Size / Dimension
- 3.78" L x 2.80" W x 1.26" H (96.0mm x 71.0mm x 32.0mm)
- Series
- TLED-40W
- Voltage - Output
- 30 ~ 54V
- Weight
- -
- Number of Outputs
- 1
- Dimming
- Analog
- Termination Style
- Wire Leads
- Ratings
- IP66, NEMA 4
- Operating Temperature
- -
- Features
- OCP, OVP, SCP
- Voltage - Input (Max)
- 305VAC
- Topology
- AC DC Converter
- Voltage - Input (Min)
- 108VAC
