LMG5200MOFR
PMIC - Full, Half-Bridge Drivers
- Manufacturer No:
- LMG5200MOFR
- Manufacture:
- Texas Instruments
- Package:
- 9-QFN
- Datasheet:
- LMG5200MOFR
- Description:
- IC HALF-BRIDGE DRIVER GAN 9QFM
In Stock
3148 pcs On sales
$0
Product Parameter
- Part Status
- Active
- Current - Output / Channel
- 10A
- Applications
- Synchronous Buck Converters
- Rds On (Typ)
- 15mOhm LS, 15mOhm HS
- Mounting Type
- Surface Mount
- Package / Case
- 9-QFN
- Voltage - Load
- 80V
- Series
- -
- Fault Protection
- UVLO
- Features
- Bootstrap Circuit
- Voltage - Supply
- 4.75V ~ 5.25V
- Interface
- Logic
- Output Configuration
- Half Bridge
- Load Type
- Inductive
- Current - Peak Output
- -
- Packaging
- Digi-Reel®
- Operating Temperature
- -40°C ~ 125°C (TJ)
- Technology
- NMOS
- Supplier Device Package
- 9-QFM (8x6)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
LMG5200MOFR Relevant information

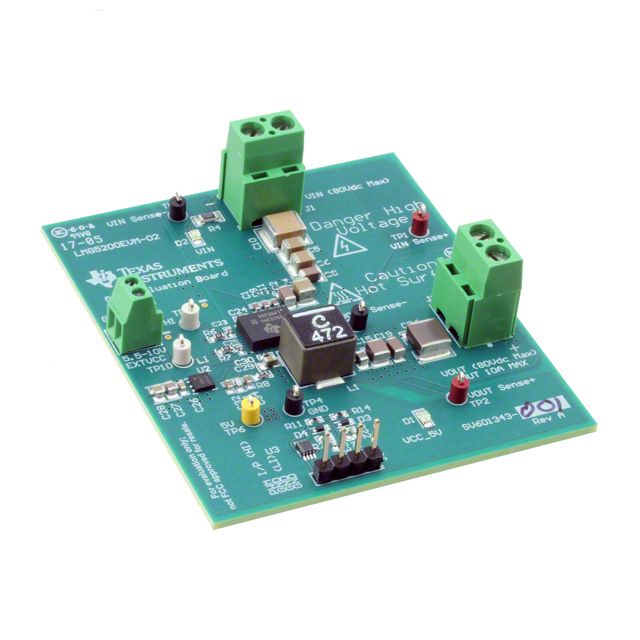

LMG5200EVM-02
EVAL BOARD FOR LMG5200
LMG5200MOFR
IC HALF-BRIDGE DRIVER GAN 9QFM
LMG5200MOFT
IC HALF-BRIDGE DRIVER GAN 9QFM
