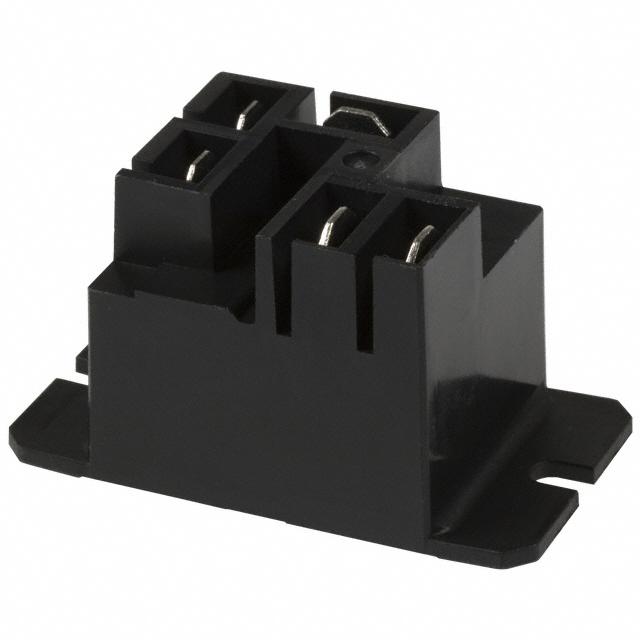

T9AP1D52-22
Power Relays, Over 2 Amps
- Manufacturer No:
- T9AP1D52-22
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- T9AP1D52-22
- Description:
- RELAY GEN PURPOSE SPST 30A 22V
In Stock
0 pcs On sales
$3.25
Product Parameter
- Seal Rating
- -
- Must Operate Voltage
- 16.5 VDC
- Coil Current
- 45.5mA
- Must Release Voltage
- 2.2 VDC
- Coil Voltage
- 22VDC
- Operating Temperature
- -55°C ~ 85°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 30A
- Operate Time
- 15ms
- Release Time
- 15ms
- Series
- T9A
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- Class F
- Coil Type
- Non Latching
- Coil Resistance
- 484 Ohms
- Packaging
- Bulk
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Relay Type
- General Purpose
- Switching Voltage
- 277VAC - Max
- Part Status
- Active
- Termination Style
- Quick Connect - 0.187"/0.250"
