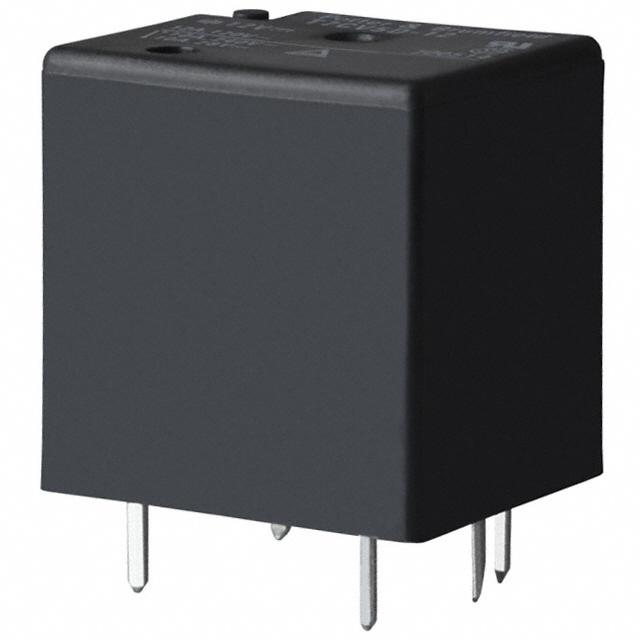

T7CV1D-05
Power Relays, Over 2 Amps
- Manufacturer No:
- T7CV1D-05
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- T7CV1D-05
- Description:
- RELAY GEN PURPOSE SPST 12A 5V
In Stock
0 pcs On sales
$1.23
Product Parameter
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 12A
- Operate Time
- 10ms
- Release Time
- 5ms
- Series
- T7C
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- Class F
- Coil Type
- Non Latching
- Coil Resistance
- 69.4 Ohms
- Packaging
- Tube
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Relay Type
- General Purpose
- Switching Voltage
- 240VAC, 28VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Flux Protection
- Must Operate Voltage
- 3.5 VDC
- Coil Current
- 72.0mA
- Must Release Voltage
- 0.25 VDC
- Coil Voltage
- 5VDC
- Operating Temperature
- -30°C ~ 85°C
