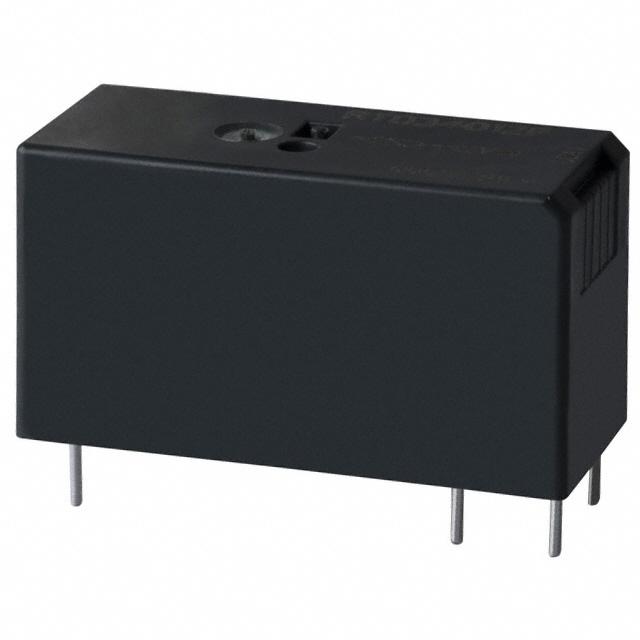

RTD34012
Power Relays, Over 2 Amps
- Manufacturer No:
- RTD34012
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- RTD34012
- Description:
- RELAY GEN PURPOSE SPST 16A 12V
In Stock
8156 pcs On sales
$2.75
Product Parameter
- Relay Type
- General Purpose
- Switching Voltage
- 400VAC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 8.4 VDC
- Coil Current
- 33.3mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 16A
- Operate Time
- 8ms
- Release Time
- 6ms
- Series
- RT1, SCHRACK
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- Class F
- Coil Type
- Non Latching
- Coil Resistance
- 360 Ohms
- Packaging
- Tube
- Contact Material
- Silver Nickel (AgNi)
