US681-C00005-030PG
Pressure Sensors, Transducers
- Manufacturer No:
- US681-C00005-030PG
- Manufacture:
- TE Connectivity Measurement Specialties
- Package:
- Cylinder
- Datasheet:
- US681-C00005-030PG
- Description:
- SENSOR 30PSIG 1/4NPT 4-20MA 2'
In Stock
0 pcs On sales
$0
Product Parameter
- Features
- Amplified Output
- Operating Temperature
- -50°C ~ 125°C
- Port Size
- Male - 1/4" (6.35mm) NPT
- Supplier Device Package
- -
- Port Style
- Threaded
- Output Type
- Analog Current
- Part Status
- Obsolete
- Applications
- Industrial Automation
- Pressure Type
- Vented Gauge
- Package / Case
- Cylinder
- Maximum Pressure
- 90PSI (620.53kPa)
- Output
- 4 mA ~ 20 mA
- Voltage - Supply
- 10V ~ 30V
- Series
- US600
- Termination Style
- Cable
- Accuracy
- ±0.1%
- Operating Pressure
- 30PSI (206.84kPa)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
US681-C00005-030PG Relevant information

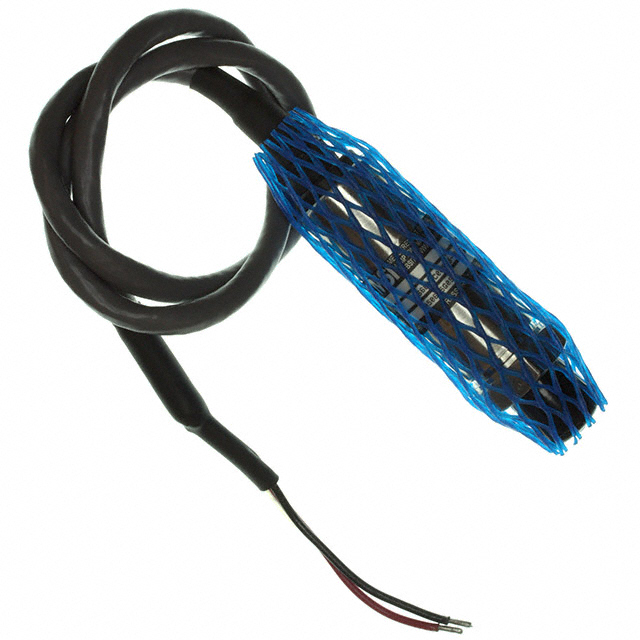

US681-C00005-015PA
SENSOR 15PSIA 1/4NPT 4-20MA 2'
US681-C00005-015PG
SENSOR 15PSIG 1/4NPT 4-20MA 2'
US681-C00005-030PA
SENSOR 30PSIA 1/4NPT 4-20MA 2'
US681-C00005-030PG
SENSOR 30PSIG 1/4NPT 4-20MA 2'

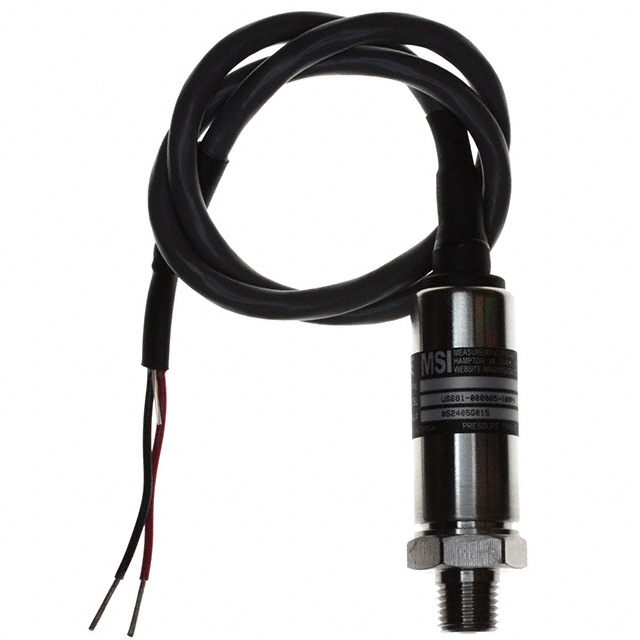

US681-C00005-100PA
SENSOR 100PSIA 1/4NPT 4-20MA 2'

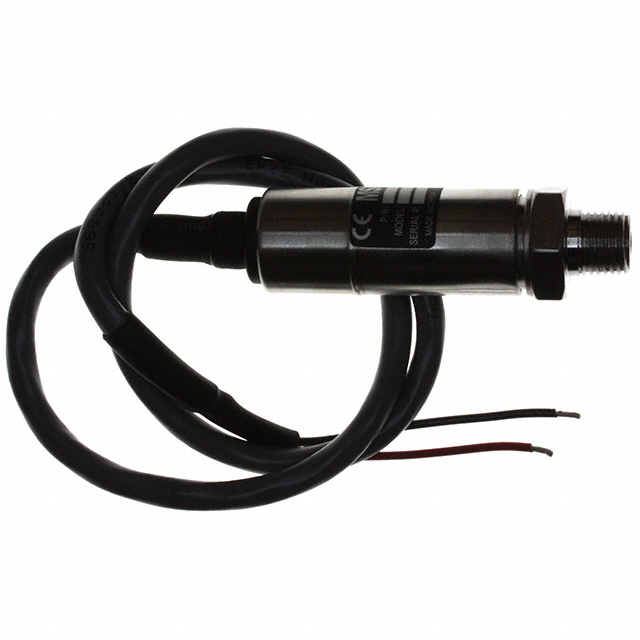

US681-C00005-100PG
