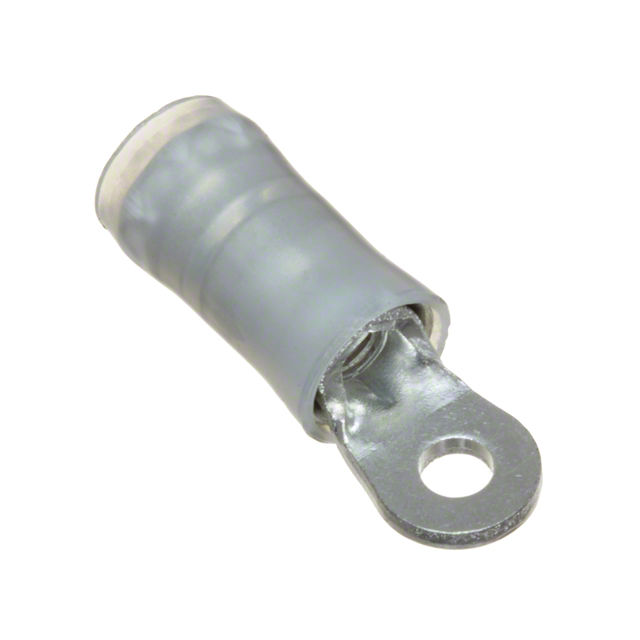

53964-1
Terminals - Ring Connectors
- Manufacturer No:
- 53964-1
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 53964-1
- Description:
- CONN RING CIRC 14-16AWG #6 CRIMP
In Stock
2396 pcs On sales
$1.55
Product Parameter
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 6 Stud
- Terminal Type
- Circular
- Color
- Natural, Black Stripe
- Contact Finish
- Tin-Lead
- Series
- PIDG
- Contact Material
- Copper
- Features
- Heavy Duty
- Length - Overall
- 1.046" (26.57mm)
- Packaging
- Bulk
- Insulation Diameter
- 0.230" (5.84mm)
- Thickness
- 0.050" (1.27mm)
- Width - Outer Edges
- 0.343" (8.71mm)
- Insulation
- Insulated
- Material - Insulation
- Polyvinylidene Fluoride (PVDF)
- Wire Gauge
- 14-16 AWG
- Part Status
- Active
- Termination
- Crimp
