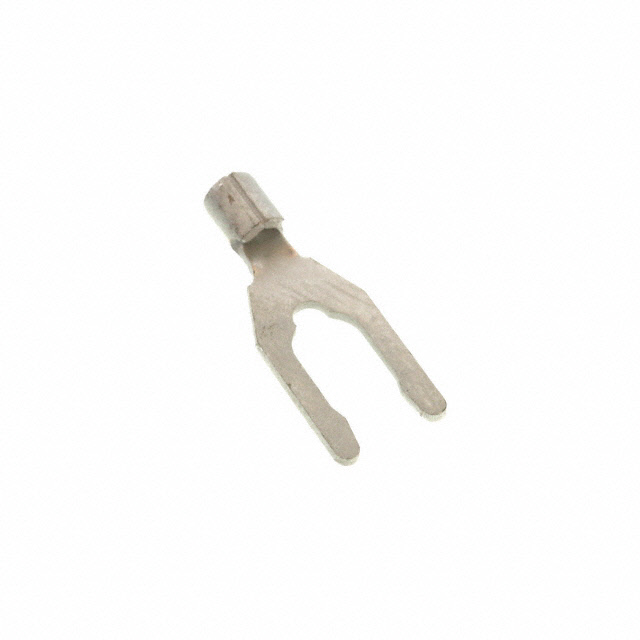

52713-1
Terminals - Spade Connectors
- Manufacturer No:
- 52713-1
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 52713-1
- Description:
- CONN SPADE TERM 14-16AWG #8
In Stock
1000 pcs On sales
$0.46
Product Parameter
- Features
- Brazed Seam, Serrated Termination
- Insulation Diameter
- -
- Packaging
- Bulk
- Width - Outer Edges
- 0.281" (7.14mm)
- Insulation
- Non-Insulated
- Length - Termination
- 0.191" (4.85mm)
- Wire Gauge
- 14-16 AWG
- Material - Insulation
- -
- Part Status
- Active
- Tongue Inside Opening
- 0.164" (4.17mm)
- Termination
- Crimp
- Length - Ring Center to Termination
- 0.270" (6.86mm)
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 8 Stud
- Terminal Type
- Spring, Snap
- Contact Finish
- Tin
- Color
- -
- Contact Material
- Phosphor Bronze
- Series
- Solistrand
- Length - Overall
- 0.756" (19.20mm)
