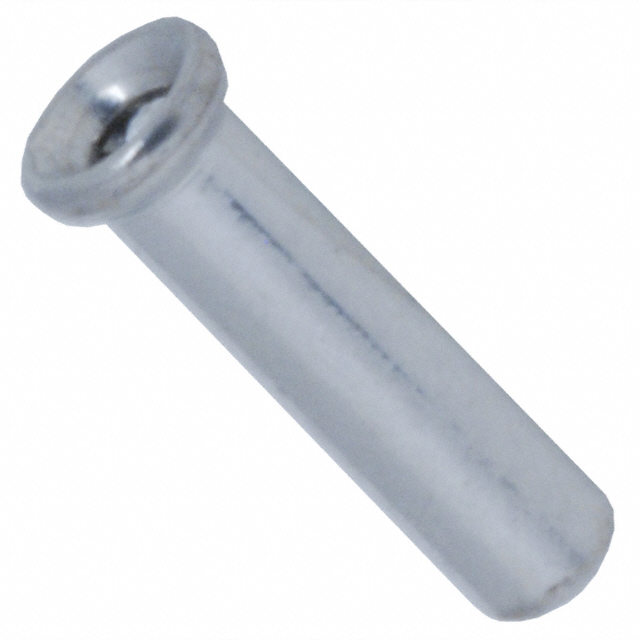

50935
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 50935
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 50935
- Description:
- CONN PIN RCPT .013-.020 SOLDER
In Stock
1758 pcs On sales
$0.74
Product Parameter
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.059" (1.50mm)
- Insertion Force
- -
- Series
- 1
- Contact Material
- Beryllium Copper
- Features
- Closed Bottom
- Length - Overall
- 0.168" (4.27mm)
- Packaging
- Bulk
- Pin Hole Diameter
- -
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.013" ~ 0.020" (0.33mm ~ 0.51mm)
- Part Status
- Active
- Operating Temperature
- -65°C ~ 126°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.040" ~ 0.041" (1.02mm ~ 1.04mm)
- Socket Depth
- 0.155" (3.94mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 5.00µin (0.127µm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
50935 Relevant information
5093
RF EMI ABSORBING SHEET 24"X24"
50935
CONN PIN RCPT .013-.020 SOLDER

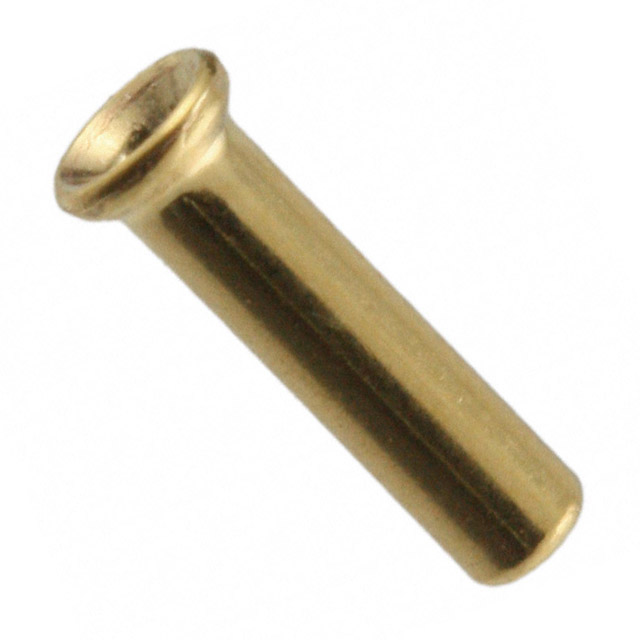

50935-2
CONN PIN RCPT .013-.020 SOLDER
50935-6
CONN PIN RCPT .013-.020 SOLDER
5093C SL001

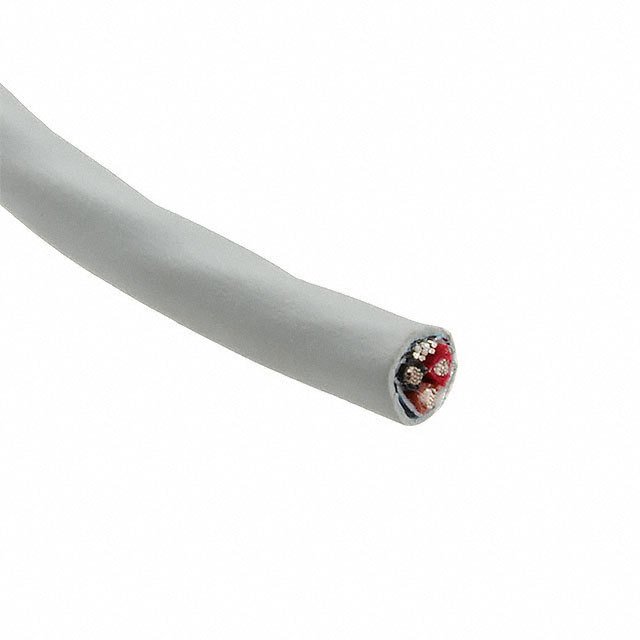

CABLE 3COND 24AWG SHLD 1000'
