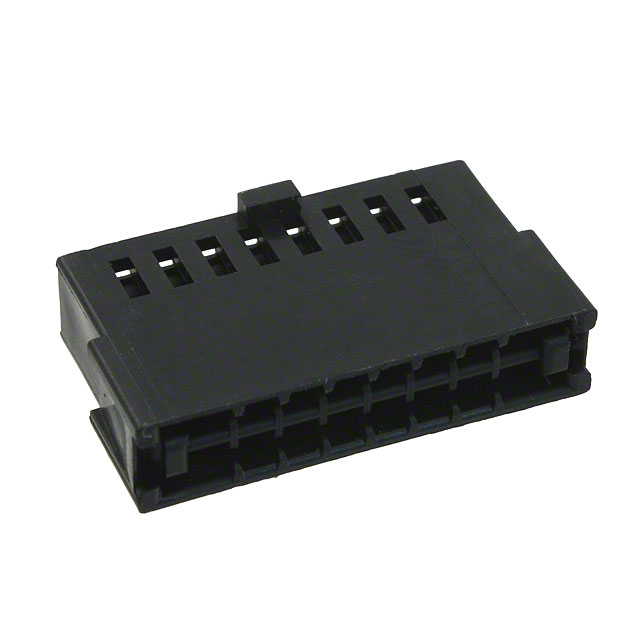

487223-2
FFC, FPC (Flat Flexible) Connectors - Housings
- Manufacturer No:
- 487223-2
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 487223-2
- Description:
- CONN FFC RCPT HSG 14POS 2.54MM
In Stock
2482 pcs On sales
$3.31
Product Parameter
- Wire Gauge
- 22-32 AWG
- Current Rating (Amps)
- 1.5A
- Part Status
- Active
- Operating Temperature
- -65°C ~ 105°C
- Housing Color
- Black
- Material Flammability Rating
- UL94 V-0
- Connector Type
- Housing for Female Contacts
- Flat Flex Type
- FFC, Discrete Wire
- Number of Rows
- 2
- Voltage Rating
- 300V
- Note
- Contacts Not Included
- Locking Feature
- Locking Ramp
- Pitch
- 0.100" (2.54mm)
- FFC, FCB Thickness
- 0.05-0.13mm
- Series
- -
- Dielectric Material
- Thermoplastic
- Features
- -
- Insulation Diameter
- 0.025" ~ 0.056" (0.64mm ~ 1.42mm)
- Packaging
- Bulk
- Number of Positions
- 14
