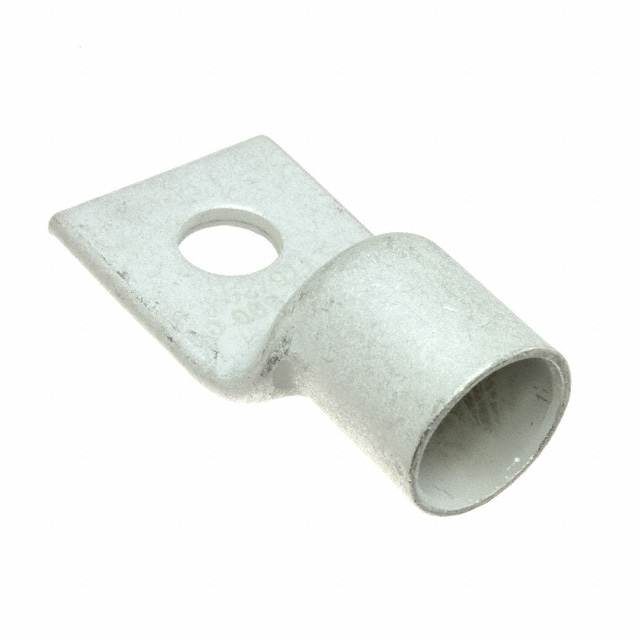

325805
Terminals - Rectangular Connectors
- Manufacturer No:
- 325805
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 325805
- Description:
- CONN TERM RECT 300 MCM #1/2
In Stock
115 pcs On sales
$13.84
Product Parameter
- Terminal Type
- Standard
- Color
- -
- Contact Finish
- Tin
- Series
- Ampower
- Terminal Style
- Single Stud Hole
- Features
- -
- Contact Material
- Copper
- Packaging
- Bulk
- Length - Overall
- 2.690" (68.33mm)
- Insulation
- Non-Insulated
- Diameter - Ring ID
- 0.515" (13.08mm)
- Wire Gauge
- 300MCM (kcmil)
- Width - Outer Edges
- 1.400" (35.56mm)
- Part Status
- Active
- Diameter - Barrel ID
- 0.758" (19.25mm)
- Termination
- Crimp, Barrel
- Diameter - Barrel OD
- 0.951" (24.16mm)
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 1/2 Stud
- Tab Thickness
- 0.160" (4.06mm)
