4-5435640-1
DIP Switches
- Manufacturer No:
- 4-5435640-1
- Manufacture:
- TE Connectivity ALCOSWITCH Switches
- Datasheet:
- 4-5435640-1
- Description:
- SWITCH ROCKER DIP SPST 60MA 5V
In Stock
4199 pcs On sales
$2.47
Product Parameter
- Series
- 7100
- Electrical Life
- 2,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 2,000 Cycles
- Features
- Sealed
- Contact Material
- Copper Alloy
- Washable
- Yes
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.340" (8.64mm)
- Part Status
- Active
- Number of Positions
- 10
- Actuator Type
- Rocker
- Current Rating (Amps)
- 60mA
- Body Material
- Polyester (PET), Glass Filled
- Operating Temperature
- -55°C ~ 105°C
- Mounting Type
- Through Hole
- Actuator Level
- Raised
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 1.080" (27.43mm)
- Voltage Rating
- 5VDC
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
4-5435640-1 Relevant information

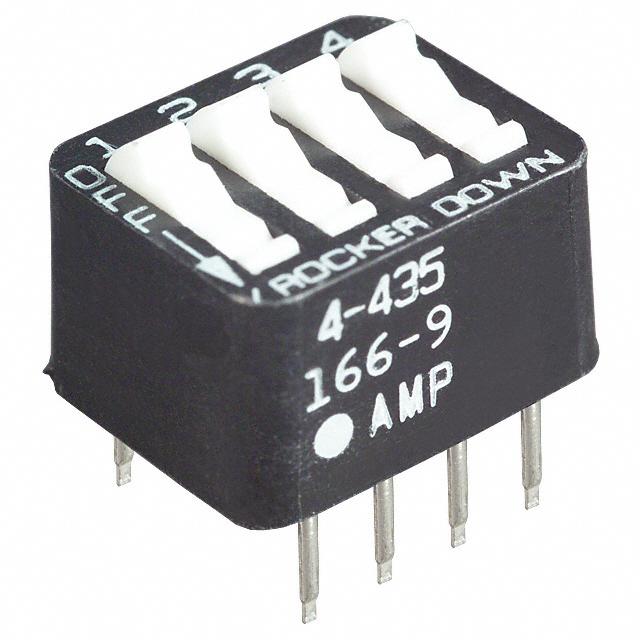

4-5435166-9
