KCS03X012EAAA
Contactors (Electromechanical)
- Manufacturer No:
- KCS03X012EAAA
- Manufacture:
- TE Connectivity Aerospace Defense and Marine
- Datasheet:
- KCS03X012EAAA
- Description:
- RELAY CONTACTOR SPST 600A 12V
In Stock
17 pcs On sales
$363.43
Product Parameter
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 600A
- Contact Form
- SPST-NO (DM) (1 Form X)
- Operate Time
- 20ms
- Release Time
- 5ms
- Mounting Type
- Chassis Mount
- Coil Resistance
- 47Ohms
- Series
- KCS03X, KILOVAC
- Contact Material
- -
- Features
- Sealed - Hermetically
- Switching Voltage
- 600VDC - Max
- Packaging
- Bulk
- Termination Style
- Stud, Wire Leads
- Coil Power
- 3W
- Must Operate Voltage
- 9 VDC
- Part Status
- Active
- Must Release Voltage
- 5 VDC
- Coil Current
- 255mA
- Operating Temperature
- -40°C ~ 105°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
KCS03X012EAAA Relevant information

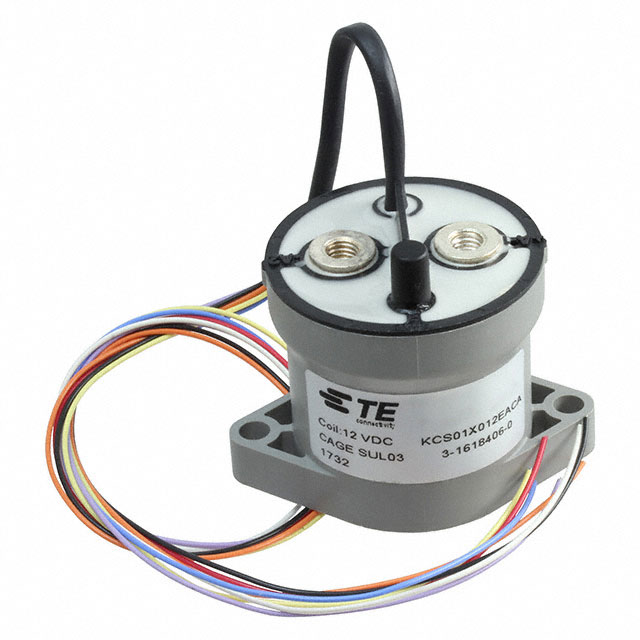

KCS01X012EACA
