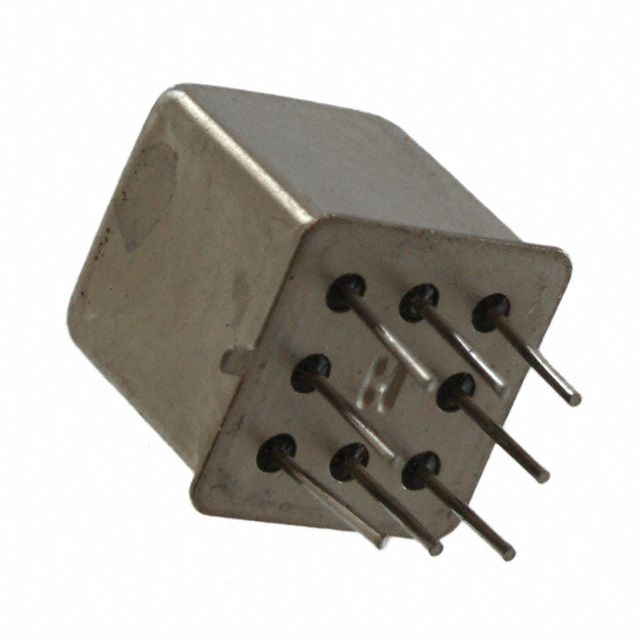

JMGSCD-26MW
Signal Relays, Up to 2 Amps
- Manufacturer No:
- JMGSCD-26MW
- Manufacture:
- TE Connectivity Aerospace Defense and Marine
- Datasheet:
- JMGSCD-26MW
- Description:
- RELAY GEN PURPOS DPDT 1A 26.5VDC
In Stock
10 pcs On sales
$117.5
Product Parameter
- Release Time
- 7.5ms
- Series
- Military, MIL-R-39016/42, MGS, CII
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 3.2 kOhms
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 28VDC - Nom
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Hermetically
- Must Operate Voltage
- 14 VDC
- Coil Current
- 8.3mA
- Must Release Voltage
- 1.4 VDC
- Coil Voltage
- 26.5VDC
- Operating Temperature
- -65°C ~ 125°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 1A
- Operate Time
- 4ms
