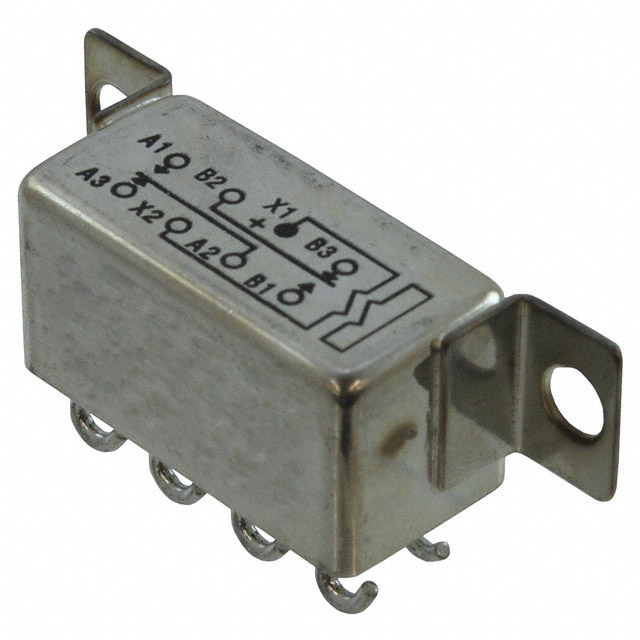

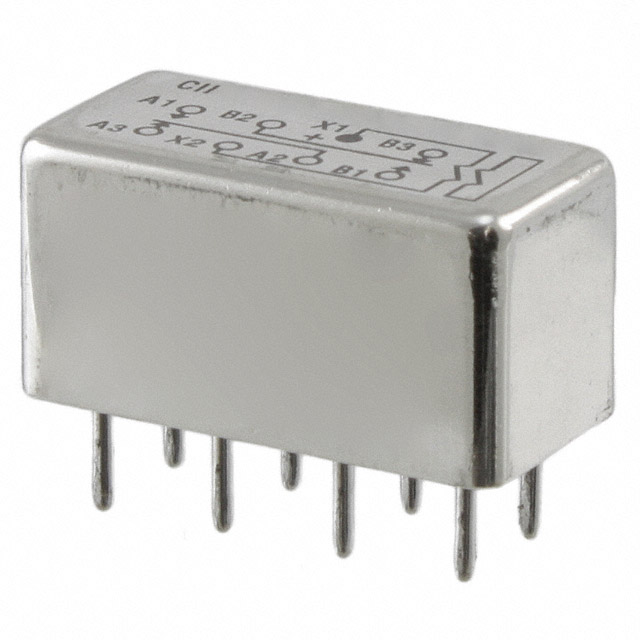

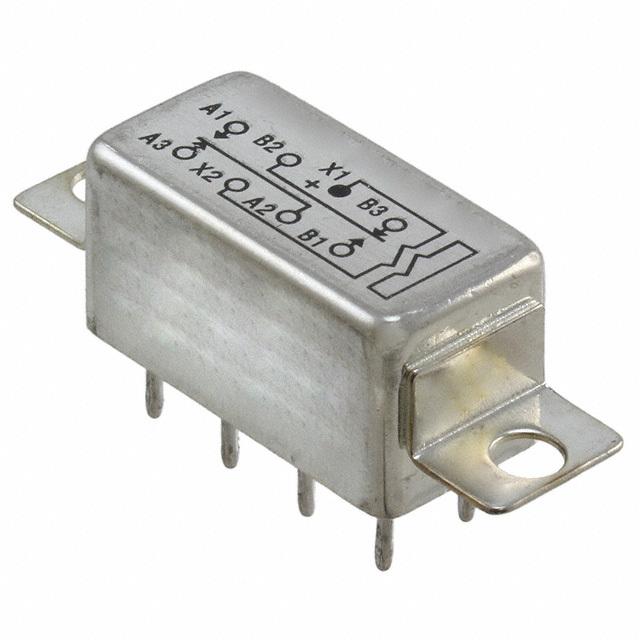

HMB1130K01M
Signal Relays, Up to 2 Amps
- Manufacturer No:
- HMB1130K01M
- Manufacture:
- TE Connectivity Aerospace Defense and Marine
- Datasheet:
- HMB1130K01M
- Description:
- RELAY GEN PURPOS DPDT 2A 26.5VDC
In Stock
10 pcs On sales
$151.9
Product Parameter
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 28VDC - Nom
- Part Status
- Active
- Termination Style
- Solder Hook
- Seal Rating
- Sealed - Hermetically
- Must Operate Voltage
- 15 VDC
- Coil Current
- 37.9mA
- Must Release Voltage
- 1.5 VDC
- Coil Voltage
- 26.5VDC
- Operating Temperature
- -65°C ~ 125°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 2A
- Operate Time
- 5ms
- Release Time
- 5ms
- Series
- Military, MIL-R-39016/22, HMB, CII
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 700 Ohms
