RFE160012
AC DC Converters
- Manufacturer No:
- RFE160012
- Manufacture:
- TDK-Lambda Americas Inc.
- Datasheet:
- RFE160012
- Description:
- AC/DC CONVERTER 12V 1600W
In Stock
2 pcs On sales
$898.91
Product Parameter
- Type
- Enclosed
- Voltage - Output 1
- 12V
- Series
- RFE1600 (1600W)
- Voltage - Output 2
- -
- Features
- Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
- Voltage - Output 3
- -
- Approvals
- CE
- Voltage - Output 4
- -
- Efficiency
- 90%
- Voltage - Isolation
- 3kV
- Part Status
- Active
- Minimum Load Required
- -
- Applications
- ITE (Commercial)
- Operating Temperature
- 0°C ~ 70°C (With Derating)
- Mounting Type
- Chassis Mount
- Current - Output (Max)
- 133A
- Power (Watts)
- 1600W
- Voltage - Input
- 85 ~ 265 VAC
- Size / Dimension
- 12.60" L x 3.45" W x 1.61" H (320.0mm x 85.0mm x 40.8mm)
- Number of Outputs
- 1
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RFE160012 Relevant information

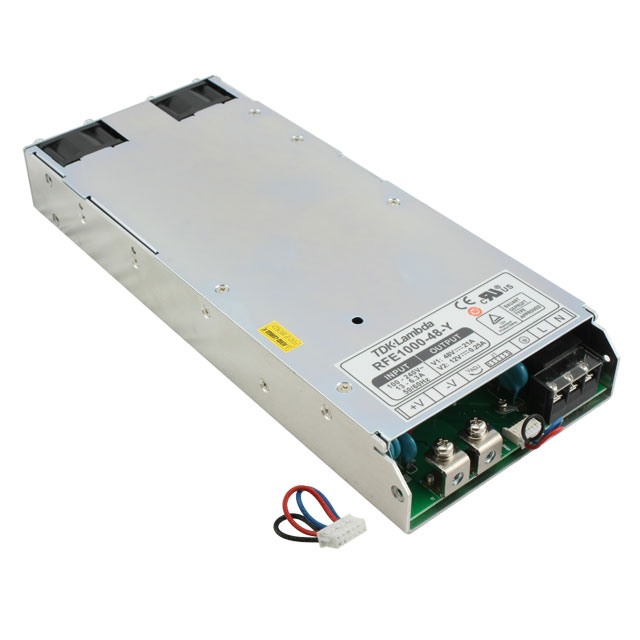

RFE1000-24-Y
