PFE300S-28/T
AC DC Converters
- Manufacturer No:
- PFE300S-28/T
- Manufacture:
- TDK-Lambda Americas Inc.
- Package:
- 11-DIP Module, Full Brick
- Datasheet:
- PFE300S-28/T
- Description:
- AC/DC CONVERTER 28V 10.8A 300W
In Stock
0 pcs On sales
$0
Product Parameter
- Efficiency
- 86%
- Voltage - Output 2
- -
- Part Status
- Obsolete
- Voltage - Output 3
- -
- Applications
- ITE (Commercial)
- Voltage - Output 4
- -
- Mounting Type
- Through Hole
- Operating Temperature
- -40°C ~ 100°C
- Power (Watts)
- 300W
- Current - Output (Max)
- 10.8A
- Package / Case
- 11-DIP Module, Full Brick
- Line Regulation
- 56mV
- Type
- Enclosed
- Load Regulation
- 56mV
- Series
- PFE300S (300W)
- Voltage - Input
- 85 ~ 265 VAC
- Weight
- 0.551 lb (249.93 g)
- Size / Dimension
- 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
- Features
- OCP, OTP, OVP
- Number of Outputs
- 1
- Approvals
- CE, cULus
- Voltage - Output 1
- 28V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PFE300S-28/T Relevant information
PFE3000-12-069RA
AC/DC CONVERTER 12V 3000W
PFE300S-12
AC/DC CONVERTER 12V 25A 300W

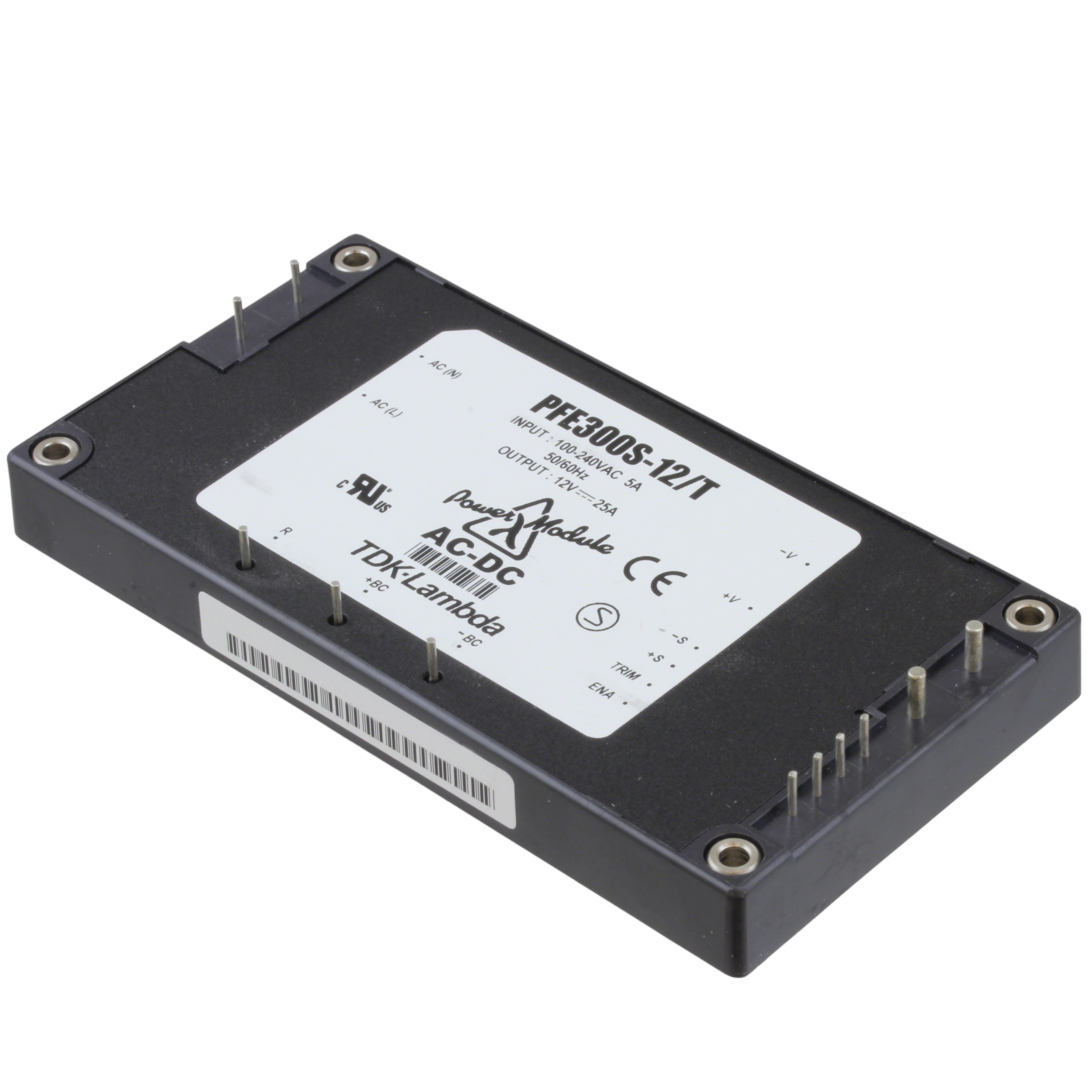

PFE300S-12/T
AC/DC CONVERTER 12V 25A 300W

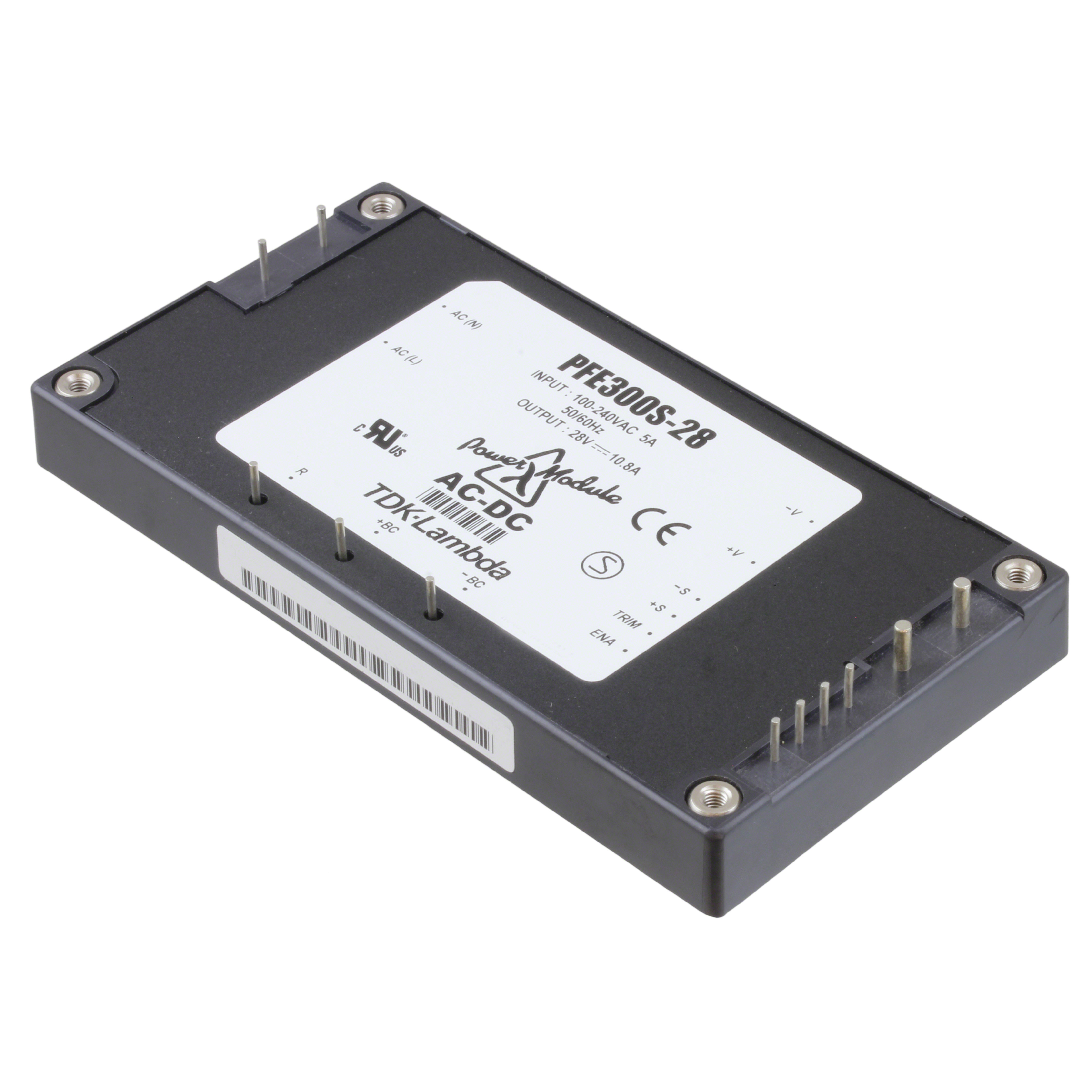

PFE300S-28
