CSW65-15/D
AC DC Converters
- Manufacturer No:
- CSW65-15/D
- Manufacture:
- TDK-Lambda Americas Inc.
- Datasheet:
- CSW65-15/D
- Description:
- AC/DC CONVERTER 15V 65W
In Stock
9 pcs On sales
$59.75
Product Parameter
- Power (Watts)
- 65W
- Voltage - Input
- 90 ~ 305 VAC
- Size / Dimension
- 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm)
- Number of Outputs
- 1
- Type
- Enclosed
- Voltage - Output 1
- 15V
- Series
- CSW65 (65W)
- Voltage - Output 2
- -
- Features
- -
- Voltage - Output 3
- -
- Approvals
- CE
- Voltage - Output 4
- -
- Efficiency
- 89%
- Voltage - Isolation
- 3kV
- Part Status
- Active
- Minimum Load Required
- No
- Applications
- ITE (Commercial)
- Operating Temperature
- -10°C ~ 70°C (With Derating)
- Mounting Type
- DIN Rail
- Current - Output (Max)
- 4.34A
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
CSW65-15/D Relevant information

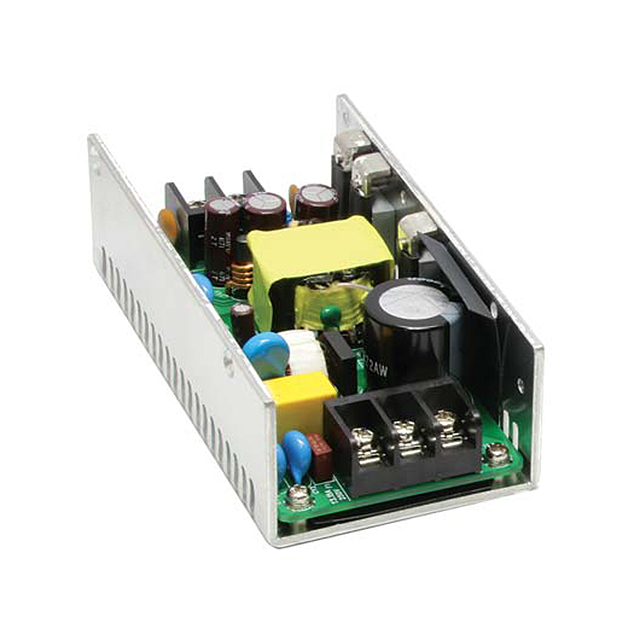

CSW65-12
AC/DC CONVERTER 12V 65W
CSW65-12/A
AC/DC CONVERTER 12V 65W

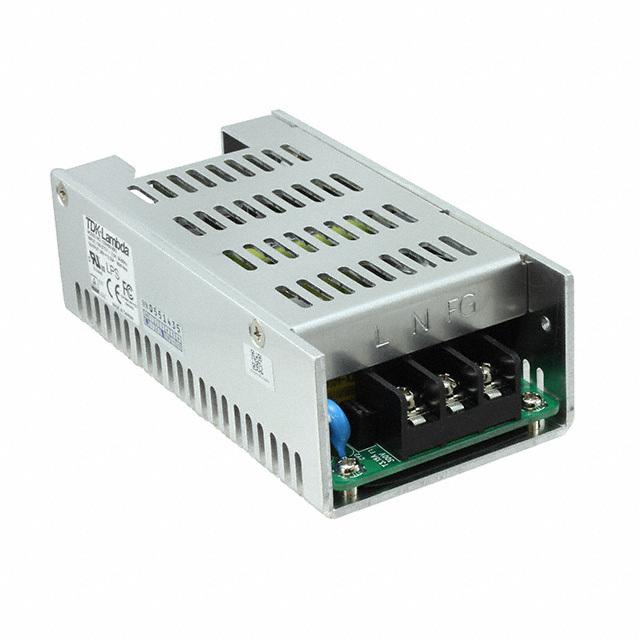

CSW65-12/D
