ALC100224R0
LED Drivers
- Manufacturer No:
- ALC100224R0
- Manufacture:
- TDK-Lambda Americas Inc.
- Datasheet:
- ALC100224R0
- Description:
- LED DRIVER CC AC/DC 6-22V 4A
In Stock
0 pcs On sales
$0
Product Parameter
- Approvals
- CE, CSA, EN, UL
- Voltage - Input (Min)
- 90VAC
- Efficiency
- 86%
- Current - Output (Max)
- 4A
- Part Status
- Obsolete
- Mounting Type
- Chassis Mount
- Power (Watts)
- 88W
- Type
- Constant Current
- Size / Dimension
- 9.49" L x 1.70" W x 1.36" H (241.0mm x 43.0mm x 34.5mm)
- Series
- ALC100 (100W)
- Voltage - Output
- 6 ~ 22V
- Weight
- 1.1 lbs (499 g)
- Number of Outputs
- 1
- Dimming
- -
- Termination Style
- Wire Leads
- Ratings
- IP66
- Voltage - Isolation
- 3kV
- Features
- OVP, SCP
- Operating Temperature
- -30°C ~ 70°C
- Topology
- AC DC Converter
- Voltage - Input (Max)
- 305VAC
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ALC100224R0 Relevant information
ALC100224R0
LED DRIVER CC AC/DC 6-22V 4A

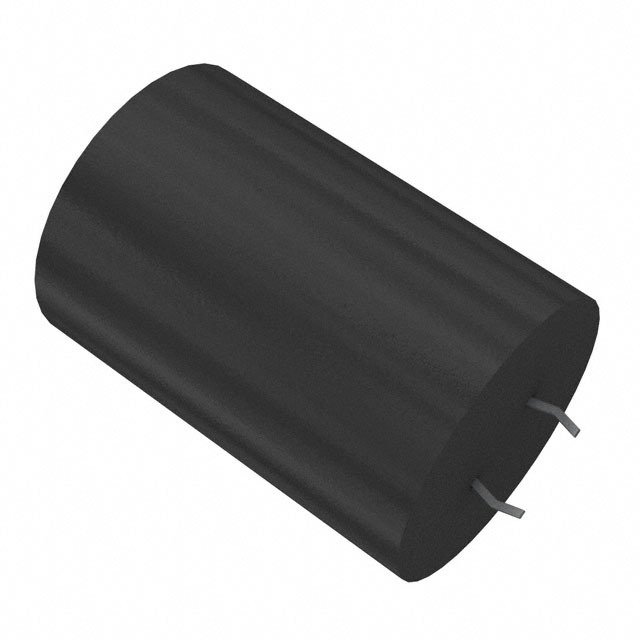

ALC10A102DF250
CAP ALUM 1000UF 20% 250V SNAP
ALC10A102DL350
CAP ALUM 1000UF 20% 350V RADIAL

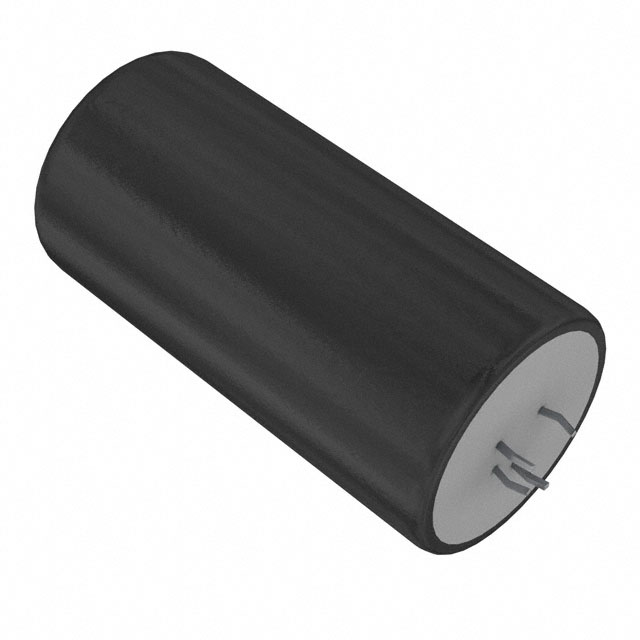

ALC10A102EL450
CAP ALUM 1000UF 20% 450V SNAP

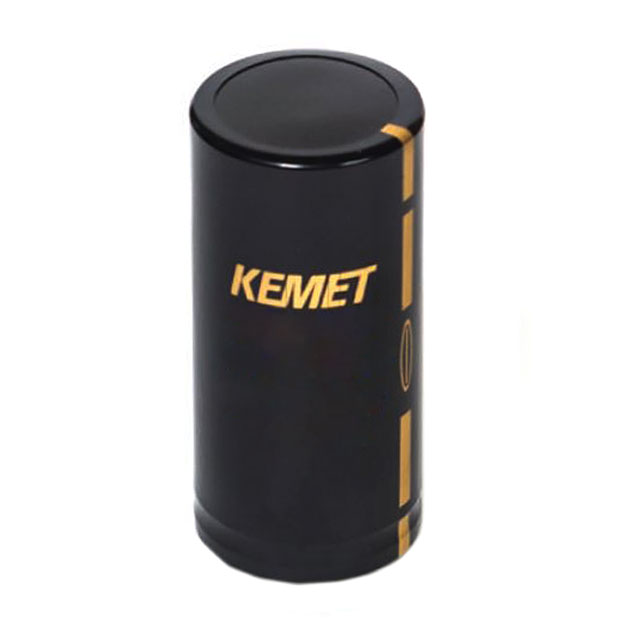

ALC10A102EP550
