TG.10R.A.0113
RF Antennas
- Manufacturer No:
- TG.10R.A.0113
- Manufacture:
- Taoglas Limited
- Datasheet:
- TG.10R.A.0113
- Description:

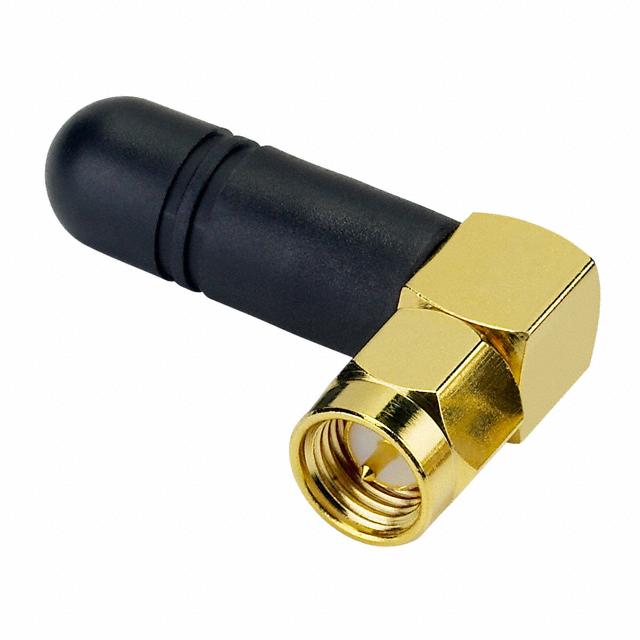

- RF ANT 750MHZ/892MHZ WHIP TILT
In Stock
3 pcs On sales
$20.93
Product Parameter
- Gain
- -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi
- Mounting Type
- Connector Mount
- VSWR
- -
- Frequency Group
- Wide Band
- Series
- Triton
- Frequency Range
- 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz
- Features
- -
- Number of Bands
- 5
- Packaging
- Bulk
- Ingress Protection
- -
- Part Status
- Active
- RF Family/Standard
- Cellular, Navigation, WiFi
- Power - Max
- 50W
- Frequency (Center/Band)
- 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.4GHz
- Return Loss
- -
- Termination
- SMA Male
- Antenna Type
- Whip, Tilt
- Applications
- CDMA, GPS, GSM, LTE, UMTS, WLAN
- Height (Max)
- 6.614" (168.00mm)
