MA510.C.CG.005
RF Antennas
- Manufacturer No:
- MA510.C.CG.005
- Manufacture:
- Taoglas Limited
- Datasheet:
- MA510.C.CG.005
- Description:

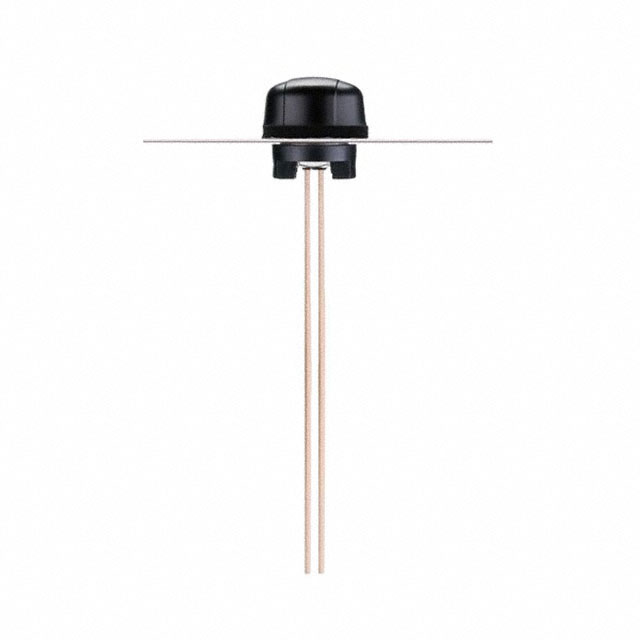

- RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA
In Stock
342 pcs On sales
$81
Product Parameter
- Features
- -
- Number of Bands
- 2
- Packaging
- Bulk
- Ingress Protection
- IP69K
- Part Status
- Active
- RF Family/Standard
- 802.15.4, Bluetooth, WiFi
- Power - Max
- 2W
- Frequency (Center/Band)
- 2.4GHz, 5.3GHz
- Return Loss
- -10dB
- Termination
- RP-SMA Male
- Antenna Type
- Dome
- Applications
- Bluetooth, WLAN, Zigbee™
- Height (Max)
- 1.142" (29.00mm)
- Gain
- 3.9dBi, 3dBi
- Mounting Type
- Panel Mount
- VSWR
- 2
- Frequency Group
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Series
- Hercules
- Frequency Range
- 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz
