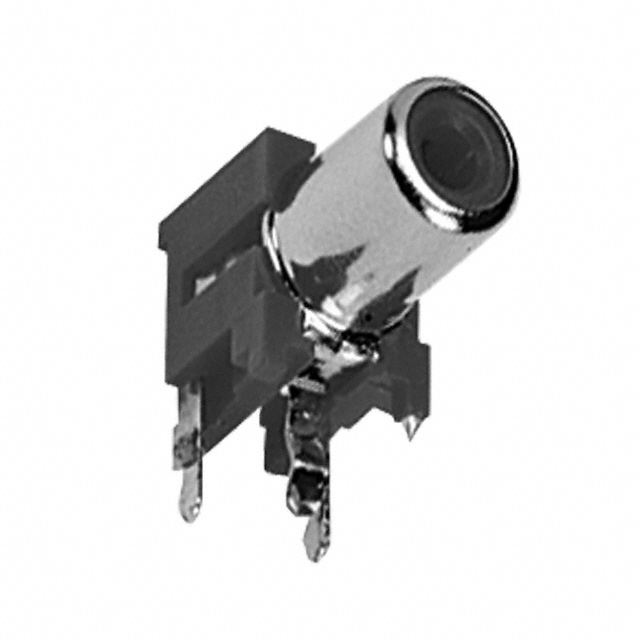

PJRAN1X1U01X

Barrel - Audio Connectors

Manufacturer No:: PJRAN1X1U01X
Manufacture:: Switchcraft Inc.
Datasheet:: PJRAN1X1U01X
Description:: CONN RCA JACK MONO 3.2MM R/A

In Stock

4015 pcs On sales

$0.95

Product Parameter

Body Color: Silver, Black

Contact Material: Copper Alloy

Part Status: Active

Insulation Color: Black

Termination: Solder

Internal Switch(s): Single Switch

Thread Size: -

Dielectric Material: Acrylonitrile Butadiene Styrene (ABS)

Signal Lines: Mono

Mating Length/Depth: -

Body Material: Copper Alloy

Current Rating (Amps): 2A

Gender: Female

Cable Opening: -

Operating Temperature: -25°C ~ 85°C

Series: PJR

Mounting Type: Through Hole, Right Angle

Contact Material - Plating: Tin

Features: -

Connector Type: Phono (RCA) Jack

Number of Positions/Contacts: 2 Conductors, 3 Contacts

Includes: -

Actual Diameter: 0.134" (3.40mm ID), 0.328" (8.33mm OD)

Industry Recognized Mating Diameter: 3.20mm ID, 9.00mm OD (RCA)

Packaging: Bulk

Panel Hole Size: -

Shielding: Unshielded

Voltage - Rated: 34VAC/DC
