PC712A
Barrel - Power Connectors
- Manufacturer No:
- PC712A
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- PC712A
- Description:

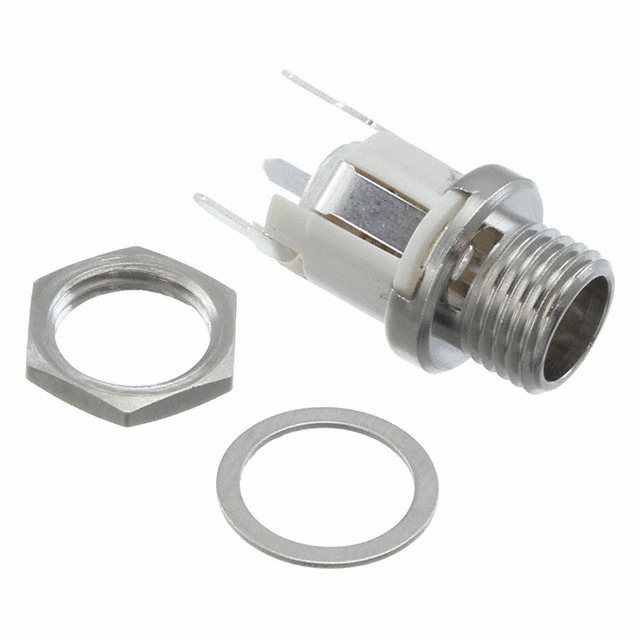

- CONN PWR JACK 2.5X5.5MM SOLDER
In Stock
6395 pcs On sales
$2.86
Product Parameter
- Body Material
- Copper Alloy
- Current Rating (Amps)
- 5A
- Mounting Type
- Through Hole
- Operating Temperature
- -
- Gender
- Male
- Connector Type
- Jack
- Contact Material - Plating
- Silver
- Series
- -
- Actual Diameter
- 0.098" (2.50mm)
- Material Flammability Rating
- -
- Features
- Mounting Hardware, Thread Lock
- Voltage - Rated
- 48V
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Contact Material
- Copper Alloy
- Industry Recognized Mating Diameter
- 2.50mm ID (0.098"), 5.50mm OD (0.217")
- Packaging
- Bulk
- Insulation Color
- -
- Shielding
- Unshielded
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Color
- Silver, Black
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Single Switch, Normally Closed
- Termination
- Solder
- Dielectric Material
- Thermoplastic
- Thread Size
- 5/16"-32
- Mating Length/Depth
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PC712A Relevant information
PC712A
CONN PWR JACK 2.5X5.5MM SOLDER
PC712AH
JACK, 2.5MM PIN, SHORT BUSHING,

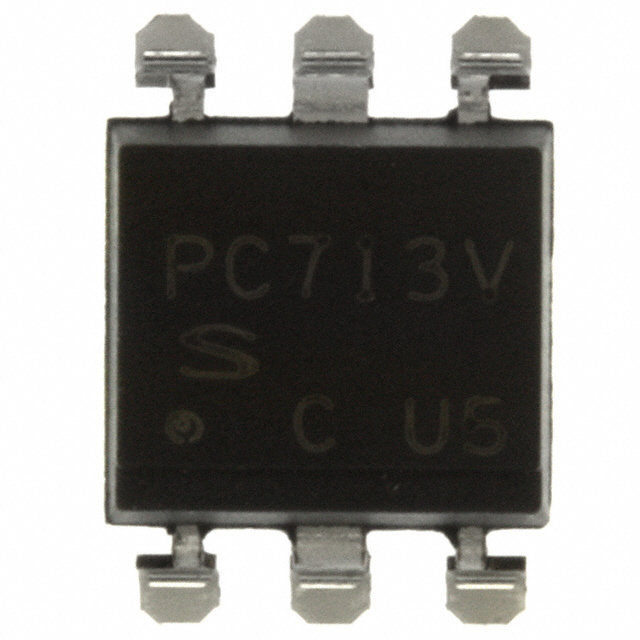

PC713V0NIZXF
OPTOISO 5KV TRANS W/BASE 6SMD

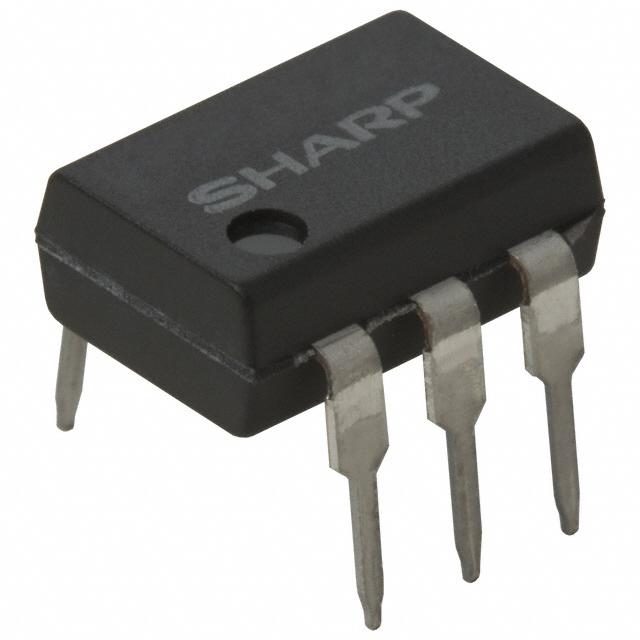

PC713V0NSZX
