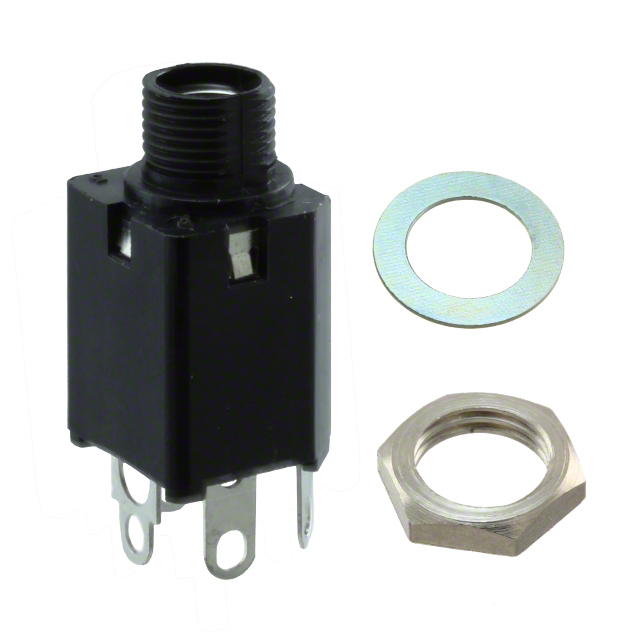

N113B

Barrel - Audio Connectors

Manufacturer No:
N113B
Manufacture:
Switchcraft Inc.
Datasheet:
N113B
Description:
CONN JACK STEREO 6.35MM PNL MNT

In Stock

0 pcs On sales

$0

Product Parameter

Termination
Solder Eyelet(s)
Internal Switch(s)
Single Switch
Thread Size
3/8"-32
Dielectric Material
Polyester, Glass Filled
Signal Lines
Stereo (3 Conductor, TRS)
Mating Length/Depth
-
Body Material
-
Current Rating (Amps)
250mA
Gender
Female
Cable Opening
-
Operating Temperature
-20°C ~ 65°C
Series
Hi-D® NL11
Mounting Type
Panel Mount, Through Hole
Contact Material - Plating
Tin
Features
Mounting Hardware, Thread Lock
Connector Type
Phone Jack
Number of Positions/Contacts
3 Conductors, 4 Contacts
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Actual Diameter
0.250" (6.35mm)
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
Packaging
-
Panel Hole Size
0.375" (9.52mm)
Shielding
Unshielded
Voltage - Rated
48VDC
Body Color
Black
Contact Material
Brass
Part Status
Obsolete
Insulation Color
-
