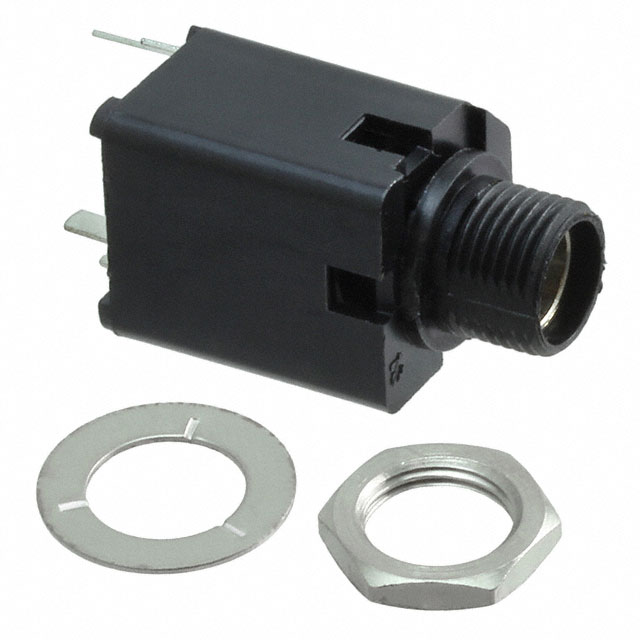

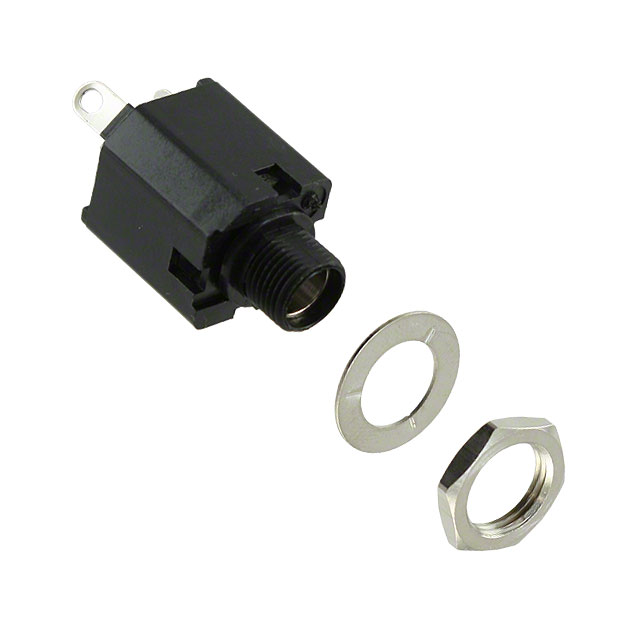

N111PC
Barrel - Audio Connectors
- Manufacturer No:
- N111PC
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- N111PC
- Description:
- CONN JACK MONO 6.35MM PNL MNT
In Stock
0 pcs On sales
$0
Product Parameter
- Features
- Mounting Hardware, Thread Lock
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Actual Diameter
- 0.250" (6.35mm)
- Industry Recognized Mating Diameter
- 6.35mm (0.250", 1/4") - Headphone
- Packaging
- -
- Panel Hole Size
- 0.375" (9.52mm)
- Shielding
- Unshielded
- Voltage - Rated
- 48VDC
- Body Color
- Black
- Contact Material
- Brass
- Part Status
- Obsolete
- Insulation Color
- -
- Termination
- Solder
- Internal Switch(s)
- Does Not Contain Switch
- Thread Size
- 3/8"-32
- Dielectric Material
- Polyester, Glass Filled
- Signal Lines
- Mono
- Mating Length/Depth
- -
- Body Material
- -
- Current Rating (Amps)
- 250mA
- Gender
- Female
- Cable Opening
- -
- Operating Temperature
- -20°C ~ 65°C
- Series
- Hi-D® NL11
- Mounting Type
- Panel Mount, Through Hole
- Contact Material - Plating
- Tin
