L114B
Barrel - Audio Connectors
- Manufacturer No:
- L114B
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- L114B
- Description:

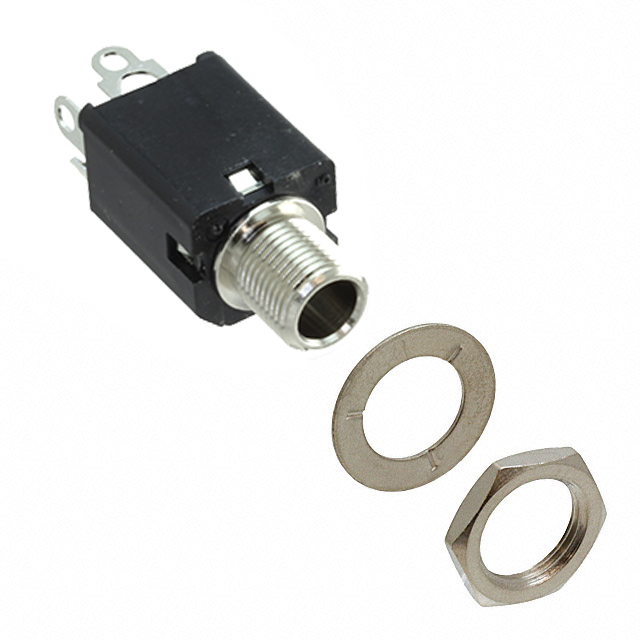

- CONN JACK STEREO 6.35MM PNL MNT
In Stock
0 pcs On sales
$0
Product Parameter
- Body Color
- Silver, Black
- Contact Material
- Brass
- Part Status
- Obsolete
- Insulation Color
- -
- Termination
- Solder Eyelet(s)
- Internal Switch(s)
- Two Switches
- Thread Size
- 3/8"-32
- Dielectric Material
- Polyester, Glass Filled
- Signal Lines
- Stereo (3 Conductor, TRS)
- Mating Length/Depth
- -
- Body Material
- Brass
- Current Rating (Amps)
- 250mA
- Gender
- Female
- Cable Opening
- -
- Operating Temperature
- -20°C ~ 65°C
- Series
- Hi-D JAX® L11
- Mounting Type
- Panel Mount
- Contact Material - Plating
- Tin
- Features
- Mounting Hardware, Thread Lock
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 3 Conductors, 5 Contacts
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Actual Diameter
- 0.250" (6.35mm)
- Industry Recognized Mating Diameter
- 6.35mm (0.250", 1/4") - Headphone
- Packaging
- -
- Panel Hole Size
- 0.375" (9.52mm)
- Shielding
- Unshielded
- Voltage - Rated
- 48VDC
