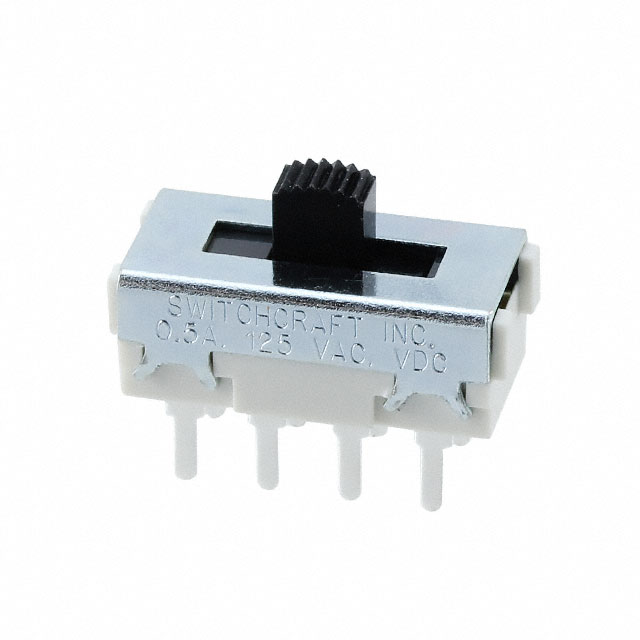

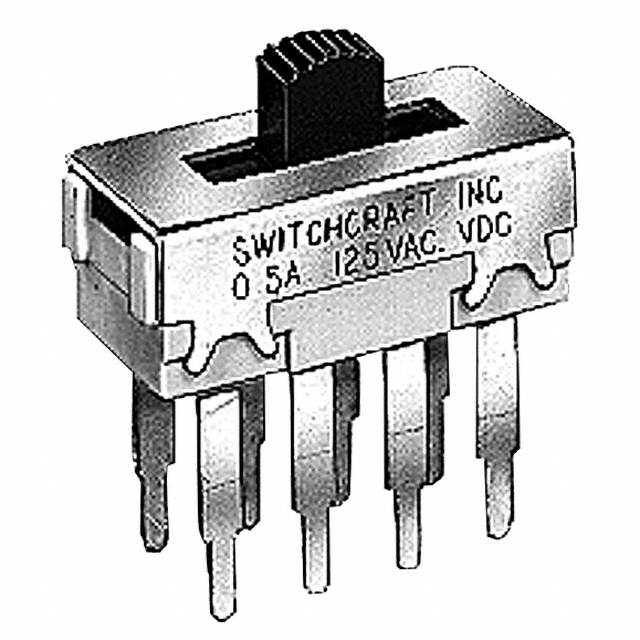

C56313L1X
Slide Switches
- Manufacturer No:
- C56313L1X
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- C56313L1X
- Description:
- SWITCH SLIDE DP3T 500MA 125V
In Stock
0 pcs On sales
$11.3
Product Parameter
- Packaging
- Bulk
- Contact Material
- Copper Alloy
- Part Status
- Active
- Actuator Material
- Thermoplastic
- Actuator Type
- Standard
- Termination Style
- PC Pin
- Mounting Type
- Through Hole
- Voltage Rating - AC
- 125V
- Switch Travel
- 3.81mm
- Voltage Rating - DC
- 125V
- Contact Finish
- Silver
- Current Rating (Amps)
- 500mA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Operating Temperature
- -20°C ~ 70°C
- Actuator Length
- 4.75mm
- Electrical Life
- -
- Series
- 56300
- Mechanical Life
- -
- Circuit
- DP3T
- Operating Force
- -
- Features
- -
- Switch Function
- On-On-On
