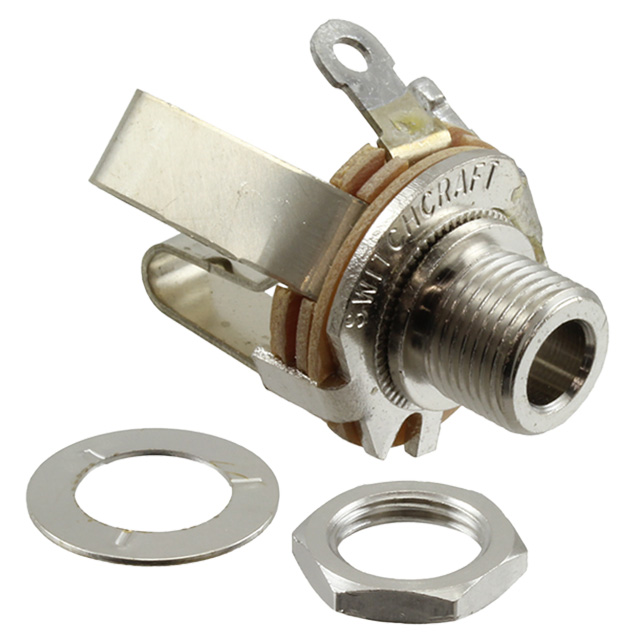

C12BZ
Barrel - Audio Connectors
- Manufacturer No:
- C12BZ
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- C12BZ
- Description:
- CONN JACK STEREO 5.33MM PNL MNT
In Stock
0 pcs On sales
$0
Product Parameter
- Body Color
- Silver
- Contact Material
- Brass
- Part Status
- Obsolete
- Insulation Color
- -
- Termination
- Solder Eyelet(s)
- Internal Switch(s)
- Does Not Contain Switch
- Thread Size
- 3/8"-32
- Dielectric Material
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Mating Length/Depth
- -
- Body Material
- Brass
- Current Rating (Amps)
- 1A
- Gender
- Female
- Cable Opening
- -
- Operating Temperature
- -20°C ~ 65°C
- Series
- LITTEL-JAX®
- Mounting Type
- Panel Mount
- Contact Material - Plating
- Nickel
- Features
- Mounting Hardware, Thread Lock
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 3 Conductors, 3 Contacts
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Actual Diameter
- 0.210" (5.33mm)
- Industry Recognized Mating Diameter
- 5.23mm (0.206")
- Packaging
- Bulk
- Panel Hole Size
- 0.375" (9.52mm)
- Shielding
- Unshielded
- Voltage - Rated
- 25VDC
