761KS12
Barrel - Power Connectors
- Manufacturer No:
- 761KS12
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- 761KS12
- Description:

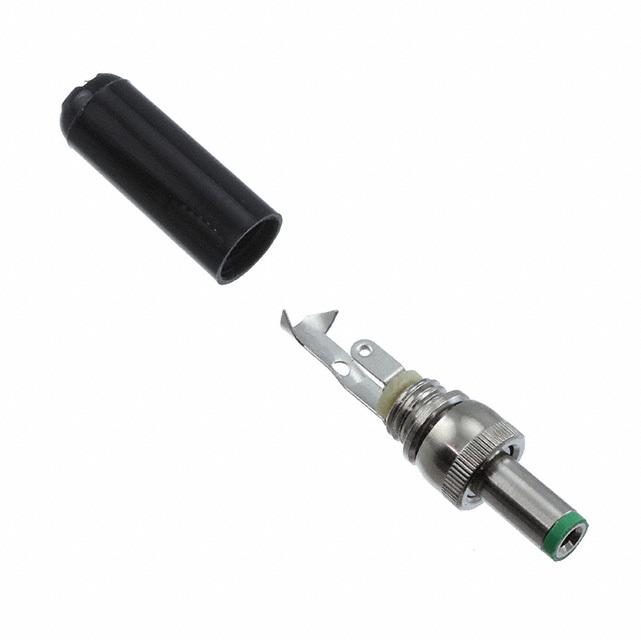

- CONN PWR PLUG 2.5X5.5MM SOLDER
In Stock
2836 pcs On sales
$5.01
Product Parameter
- Body Material
- Copper Alloy
- Current Rating (Amps)
- 5A
- Mounting Type
- Free Hanging (In-Line)
- Operating Temperature
- -
- Gender
- Female
- Connector Type
- Plug
- Contact Material - Plating
- Tin
- Series
- -
- Actual Diameter
- 0.098" (2.50mm ID), 0.217" (5.50mm OD)
- Material Flammability Rating
- -
- Features
- Cable Clamp, Thread Lock
- Voltage - Rated
- 30VDC
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts
- Includes
- 2 pcs - 1 Connector, 1 Handle
- Contact Material
- Copper Alloy
- Industry Recognized Mating Diameter
- 2.50mm ID (0.098"), 5.50mm OD (0.217")
- Packaging
- Bulk
- Insulation Color
- Black
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Silver, Black
- Ingress Protection
- IP68
- Part Status
- Active
- Internal Switch(s)
- Does Not Contain Switch
- Termination
- Solder Eyelet(s)
- Dielectric Material
- Thermoplastic
- Thread Size
- -
- Mating Length/Depth
- -
