712RA
Barrel - Power Connectors
- Manufacturer No:
- 712RA
- Manufacture:
- Switchcraft Inc.
- Datasheet:
- 712RA
- Description:

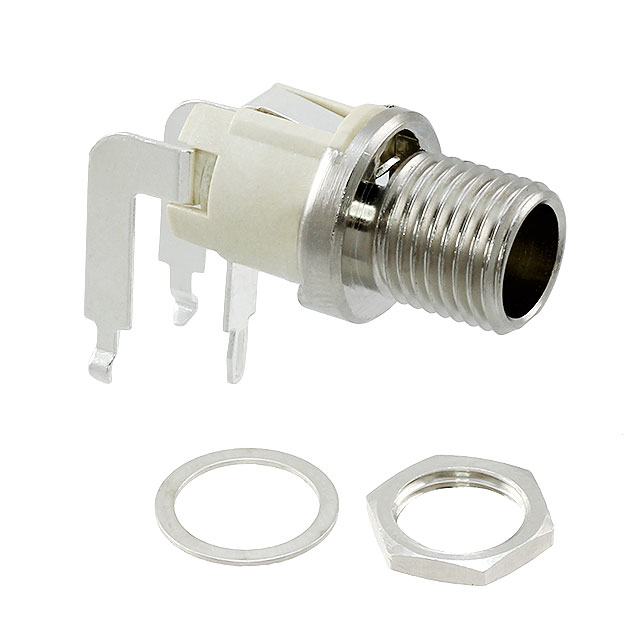

- CONN PWR JACK 2.5X5.5MM SOLDER
In Stock
3114 pcs On sales
$3.02
Product Parameter
- Thread Size
- 5/16"-32
- Mating Length/Depth
- -
- Body Material
- Copper Alloy
- Current Rating (Amps)
- 5A
- Mounting Type
- Through Hole, Right Angle
- Operating Temperature
- -
- Gender
- Male
- Connector Type
- Jack
- Contact Material - Plating
- Silver
- Series
- -
- Actual Diameter
- 0.098" (2.50mm ID), 0.217" (5.50mm OD)
- Material Flammability Rating
- -
- Features
- Mounting Hardware, Thread Lock
- Voltage - Rated
- 48V
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Contact Material
- Copper Alloy
- Industry Recognized Mating Diameter
- 2.50mm ID (0.098"), 5.50mm OD (0.217")
- Packaging
- Bulk
- Insulation Color
- -
- Shielding
- Unshielded
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Color
- Silver, Black
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Single Switch, Normally Closed
- Termination
- Solder
- Dielectric Material
- Thermoplastic
